Geometric deep learning: from theory to practice

Slides QRcode

Outline

What means Geometric Deep Learning ?
Detailed example: geometric deep learning on point clouds (pointnet)
Geometric deep learning on surfaces for non-rigid shapes
(Geometric deep learning in the large-scale era)

What means geometric deep learning ?

Geometric deep learning is the field of research that tries to apply the success of deep learning to non-euclidean data

The deep learning era

Deep learning have proven success over numerous modalities

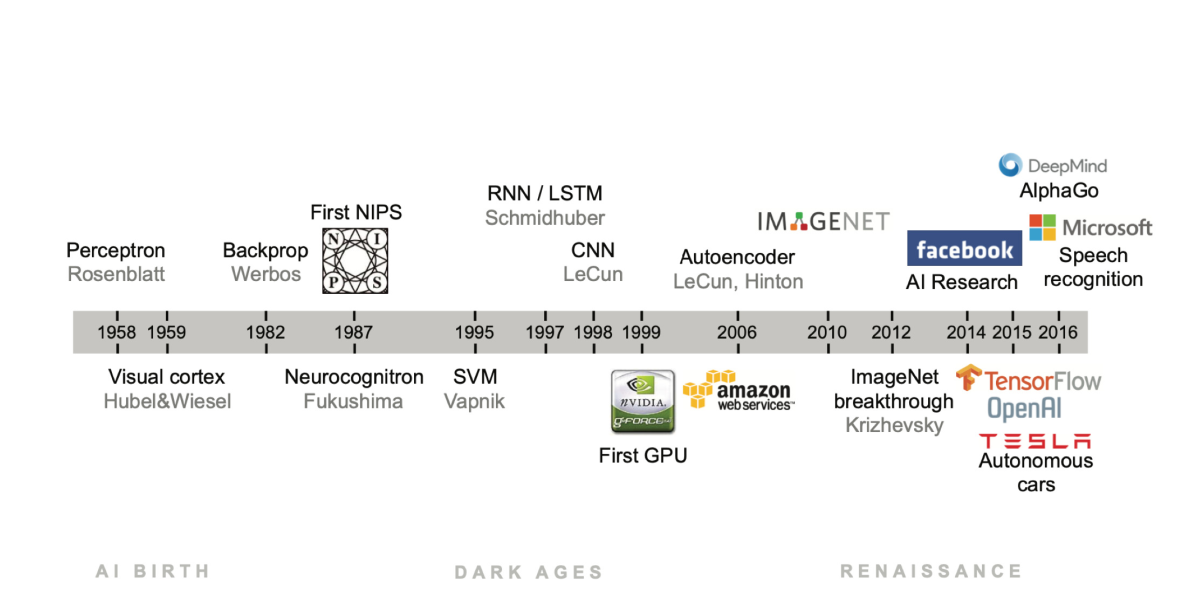

Timeline of deep learning architectures until 2017 - (Jure Leskovec, Stanford University)

The deep learning era : huge datasets

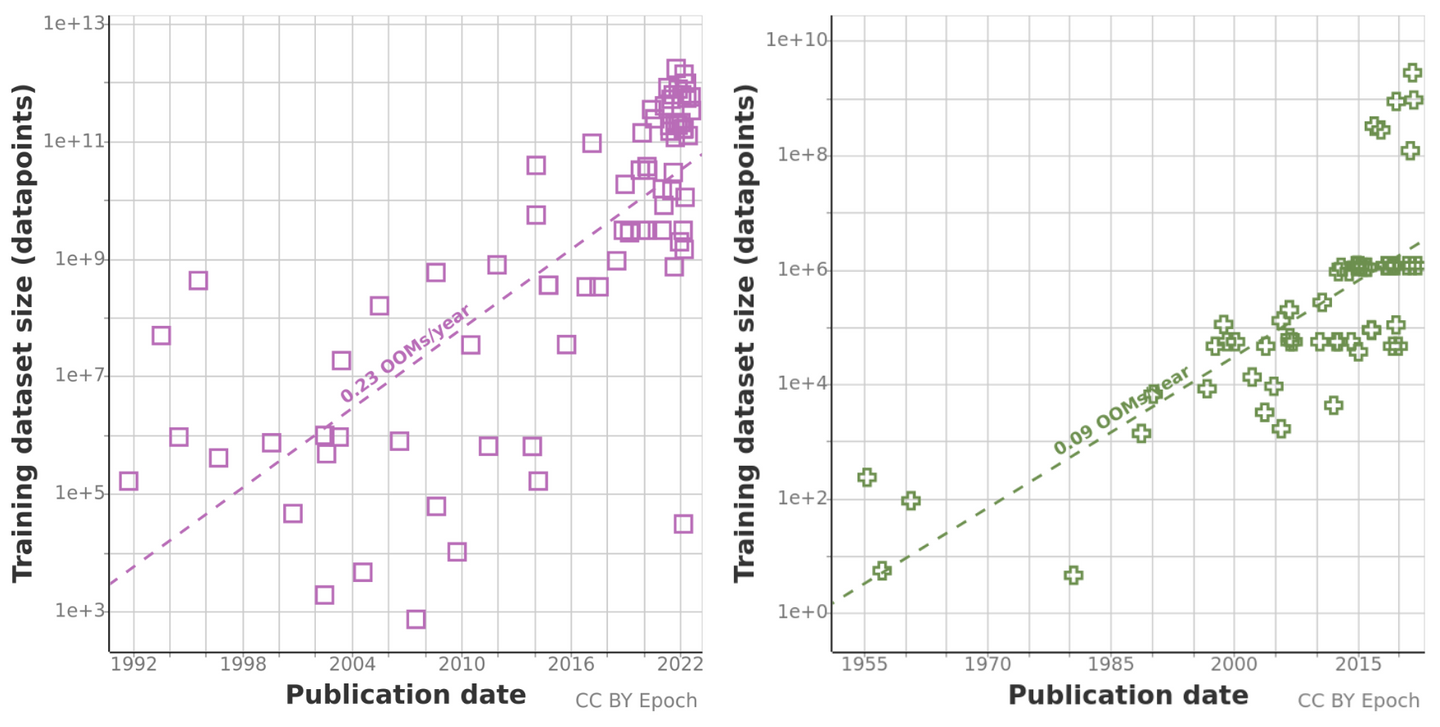

Training datasets sizes over time. Left: language; right: vision.

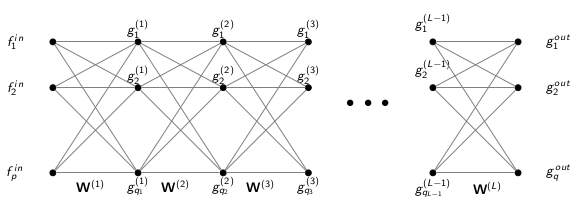

Deep learning: The Multi-Layer Perceptron (MLP)

Multi-Layer Perceptron (MLP) Deep neural network consisting of \(L\) layers

Linear layer \(\mathbf{g}^{(k)} = \xi \left( \mathbf{W}^{(k)} \mathbf{g}^{(k-1)} \right)\)

Activation, e.g. \(\xi(x) = \max \{ x, 0 \}\) rectified linear unit (ReLU)

Parameters weights of all layers \(\mathbf{W}^{(1)}, \ldots, \mathbf{W}^{(L)}\) (including biases)

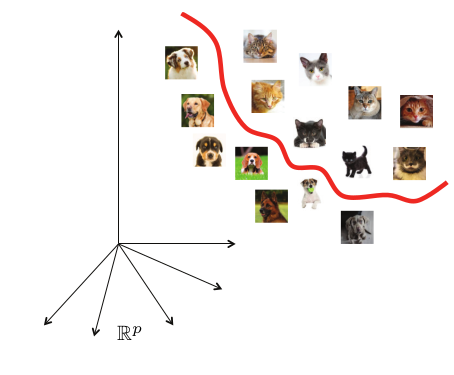

Neural Networks expressivity

Applying MLPs directly on the input data is usually too inefficient!
- An RGB image of size \(512 \times 512\) leads to input size:
  \(f_{\text{in}} = 512^2 \times 3 \approx 10^6\) nodes.
- If \(f_{\text{out}} = f_{\text{in}}\) then a single-layer
  MLP would have \(\approx 10^{12}\) trainable parameters!
Need to exploit structure in the data!

How to exploit the structure of data ?

Images: Convolutional Neural Networks

How to exploit the structure of data ?

Images: Convolutional Neural Networks

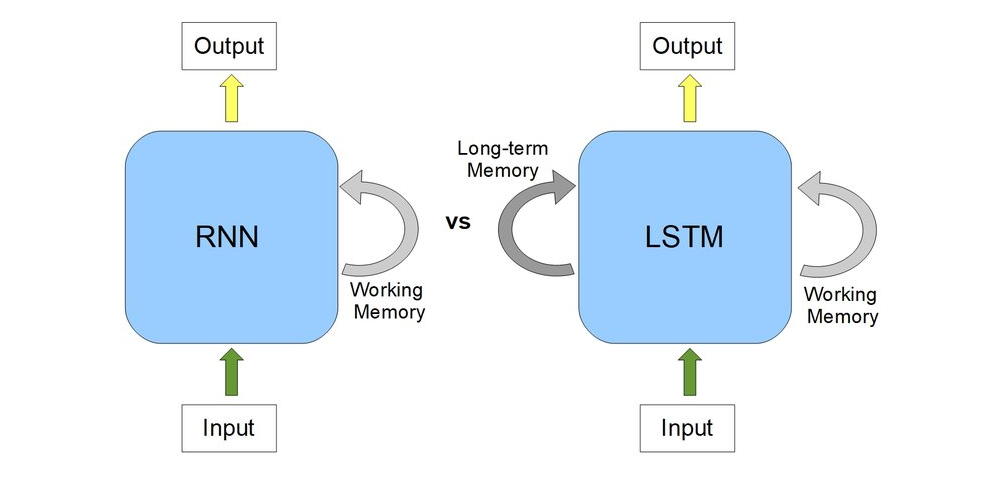

Language: Recurrent Neural Networks

How to exploit the structure of data ?

Images: Convolutional Neural Networks
Language: Recurrent Neural Networks
Audio/Time-series: Mix

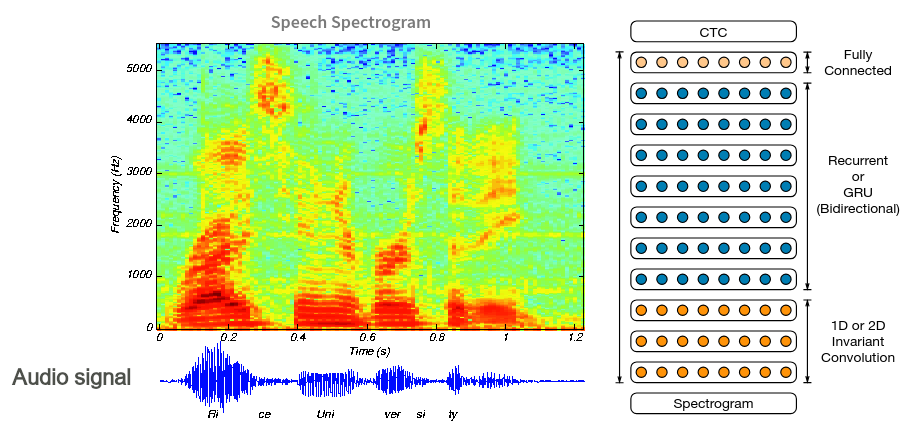

Left: audio signal and spectrogram (Don Johnson). Right: Deep Speech 2 architecture

What means geometric deep learning ?

Geometric deep learning is the field of research that tries to apply the success of deep learning to non-euclidean data.

Success of deep learning : Have a large scale dataset. Applying the original MLP idea, but adapt the linear and non-linear to the underlying structure of data.

Non-euclidean data

Euclidean data The representation space of data is \(\mathbb{R}^n\).

Non-euclidean data The representation space is non-flat. It can mean that:

A group (rotation, translation, …) acts on the data even if it leaves in an euclidean space
The data lives in a non-euclidean space
Sometimes both

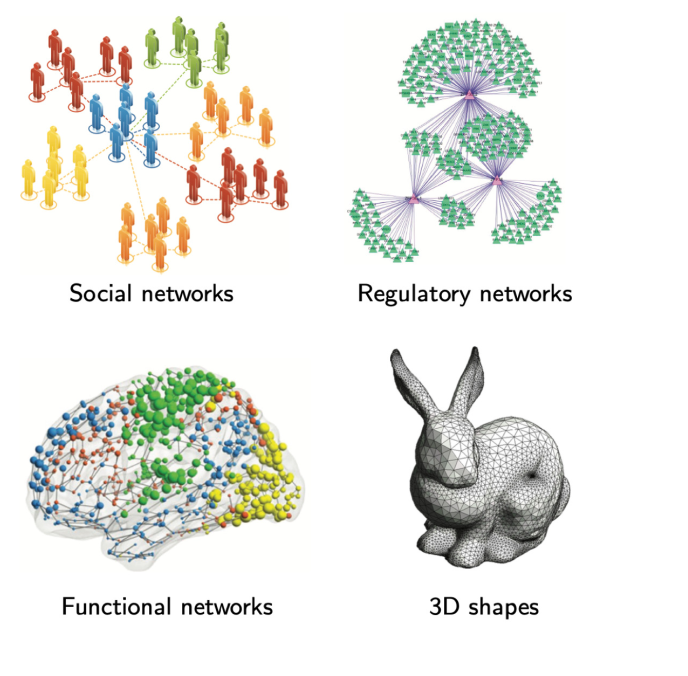

Non-euclidean data is everywhere

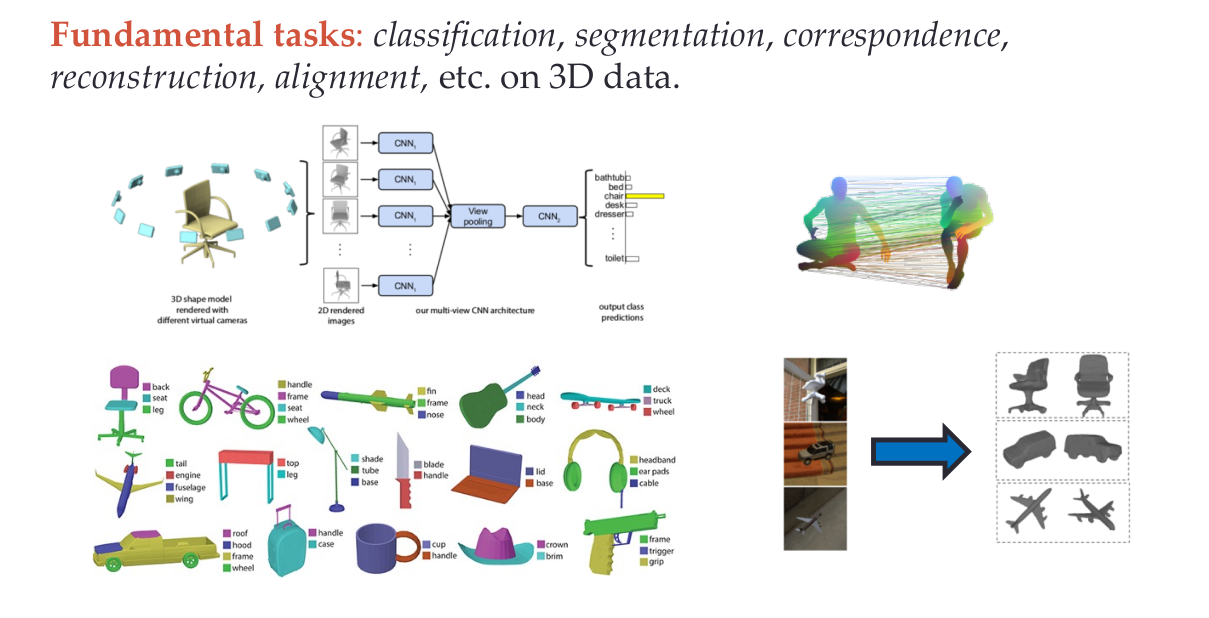

Example of 3D shapes tasks

The challenge of non-euclidean data: the case of 3D shapes

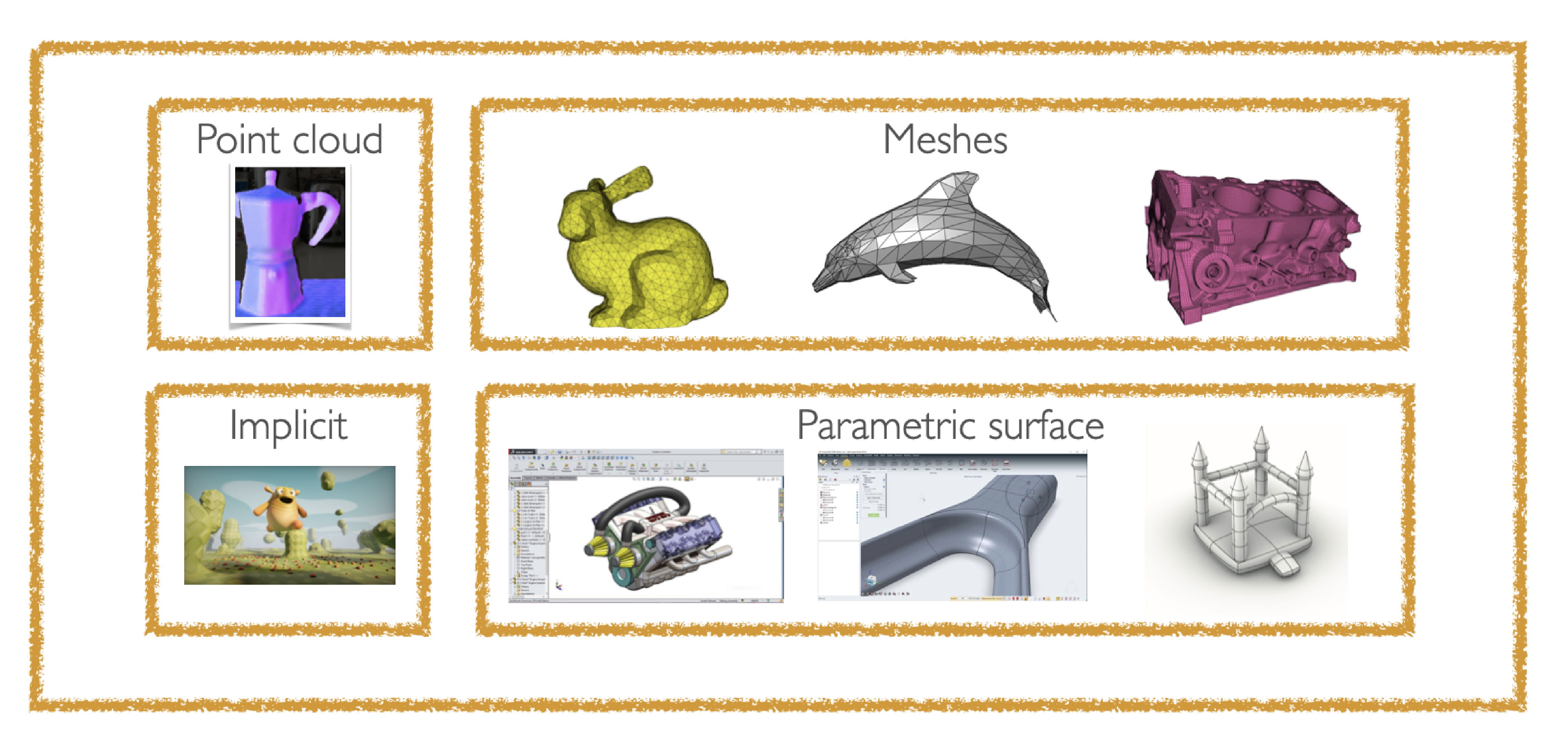

Different representations of 3D shapes. Image from Silvia Sellan.

The challenge of non-euclidean data: the case of 3D shapes

Comparison of dataset sizes

The challenge of non-euclidean data: the case of 3D shapes

Left: different transformations of a human shape. Right: Different discretization of the same human shape.

The challenge of non-euclidean data: the case of 3D shapes

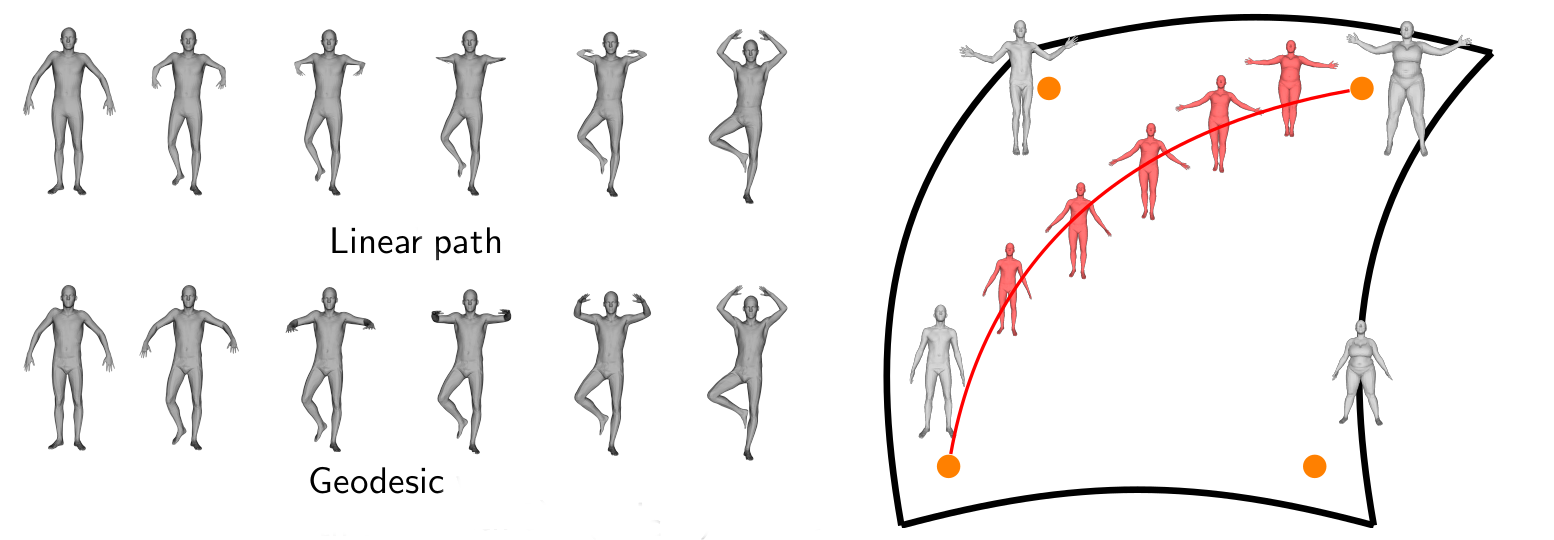

Left: linear and geodesic paths in the shape space. Right: the human shape space is non linear.

The human shape space can be represented by the manifold of immersions of a human template, equipped with a well-designed Riemannian metric.

The challenge of non-euclidean data: the case of 3D shapes

By making computation on those manifolds, we can beat complex deep learning architectures!

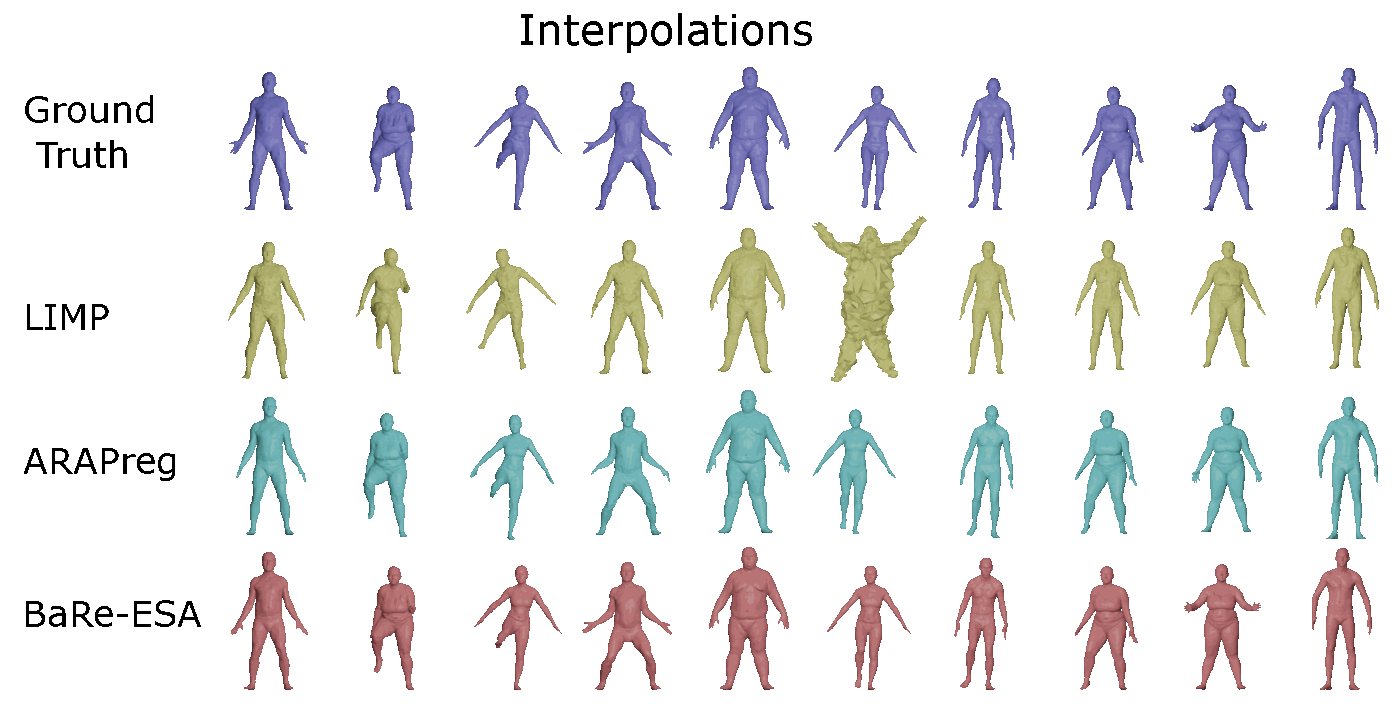

Comparison of Bare-ESA interpolation against deep learning baselines.

What means geometric deep learning ?

Geometric deep learning is the field of research that tries to apply the success of deep learning to non-euclidean data.

Success of deep learning : Have a large scale dataset. Applying the original MLP idea, but adapt the linear and non-linear to the underlying structure of data.

Non-euclidean data : The geometry of the data space is important! Plus, the datasets size are smaller (in medical imaging, some datasets have only … a few hundreds shapes or less)

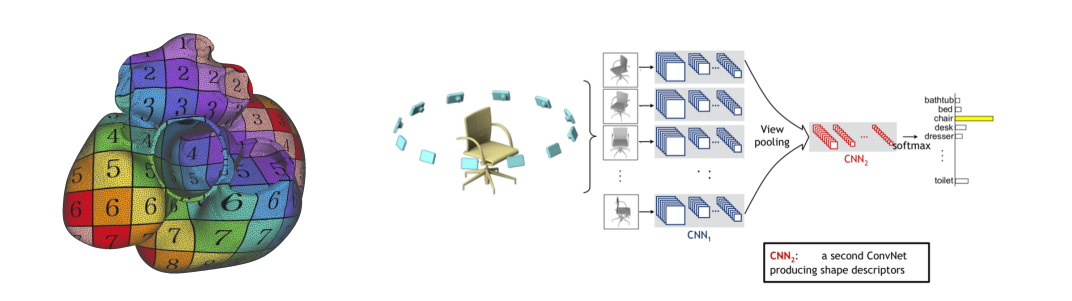

What about taking images?

Advantages

Efficiency & simplicity
Can use (pre-trained) CNNs!
Can be used to optimize 3D shapes via differentiable rendering.

Limitations

Are cumbersome for local analysis (e.g., segmentation)
Are not adapted to deformable shapes
Not great for topologically complex shapes

What about projecting to euclidean space?

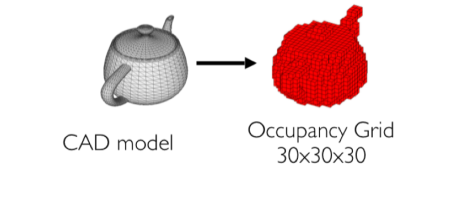

Voxelize a surface into a \(\mathbb{R}^{d*d*d}\) grid.

What about projecting to euclidean space?

Loss of information

What about projecting to euclidean space?

Loss of information
Computationnally expensive

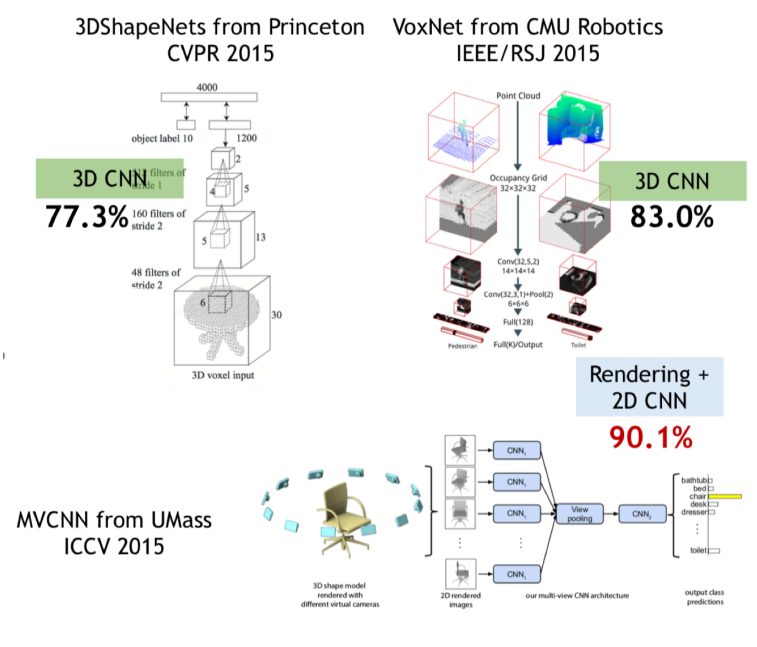

What about projecting to euclidean space?

Loss of information
Computationnally expensive
Bad performance

Geometric deep learning on point clouds

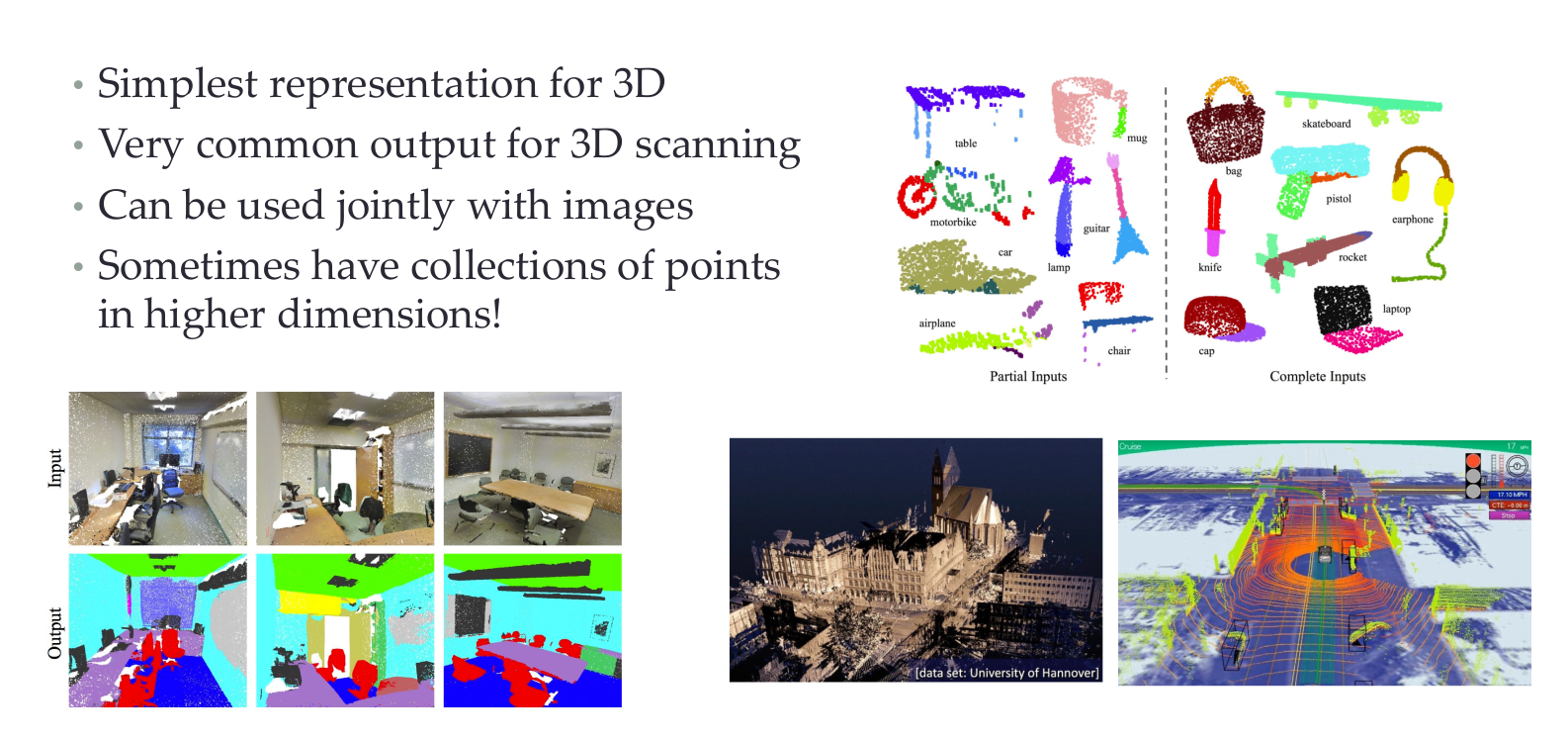

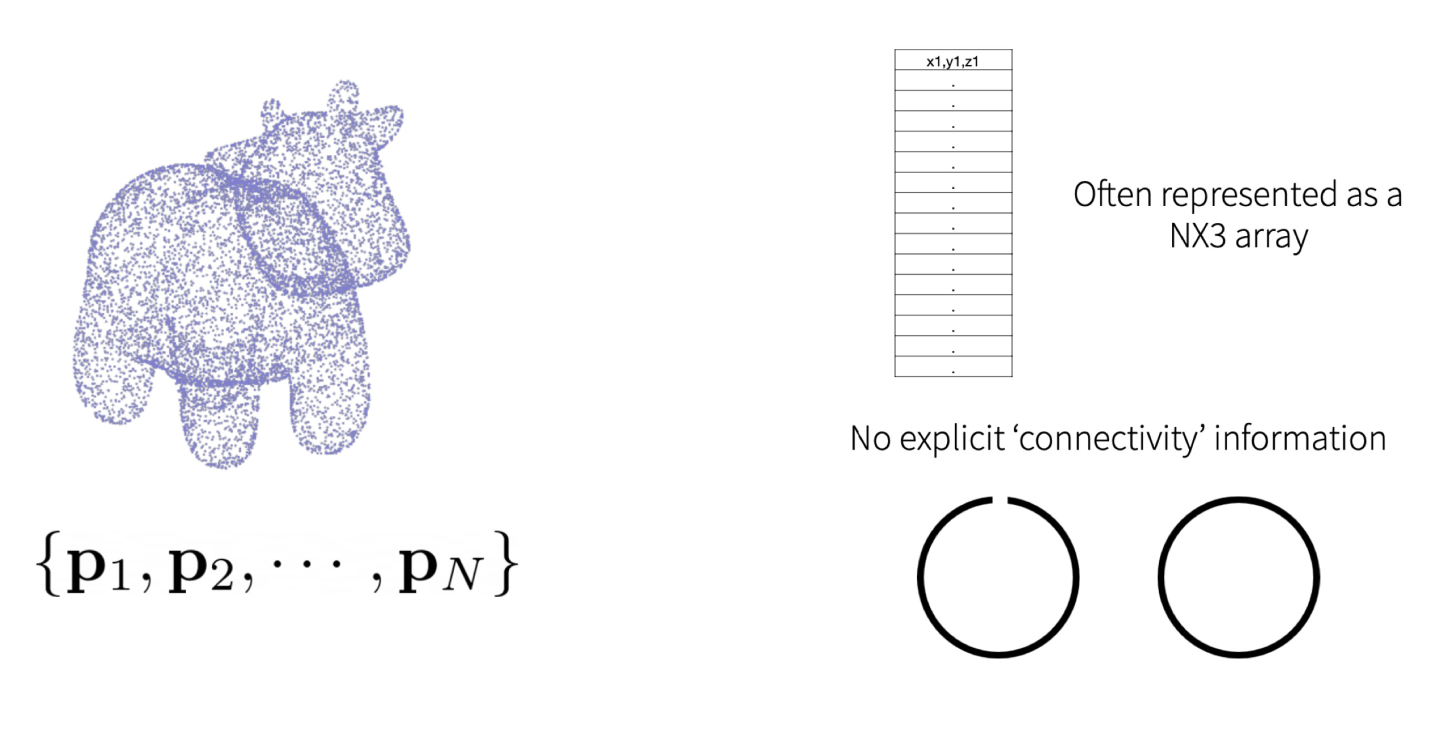

Point clouds

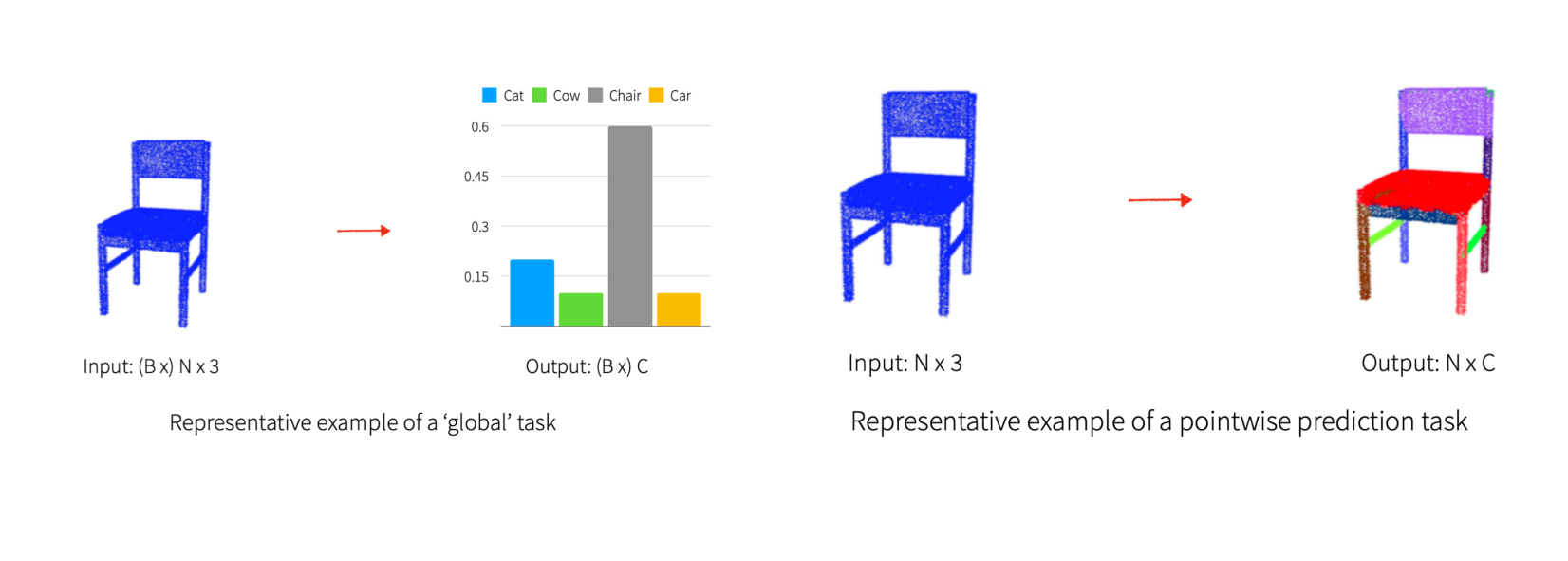

Point clouds tasks

Naive approach #1

A simple network (shared MLP).

Input: a 3-dimensional vector (3D coordinates)
Output: C-dimensional prediction (class label). Apply the same network to each point of the point cloud.

Naive approach #1

Processing each point independently! We will learn a function from 3D coordinates to a label. No communication between points = “shape awareness”.

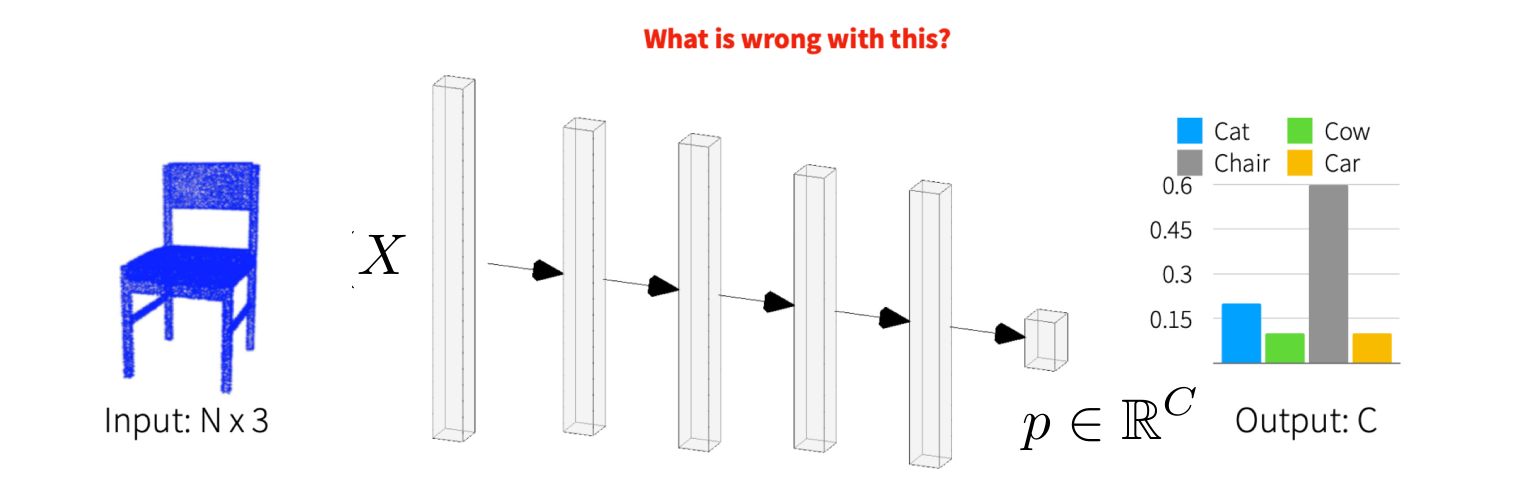

Naive approach #2

Reshape input to a matrix X of size (3*N). Fully connected layers (MLP) from X to a C-dimensional vector.

Naive approach #2

Points tied to their ‘index’ = order in the point cloud (weights for 1st point not same as, e.g., 3rd point).
Cannot handle variable input sizes.

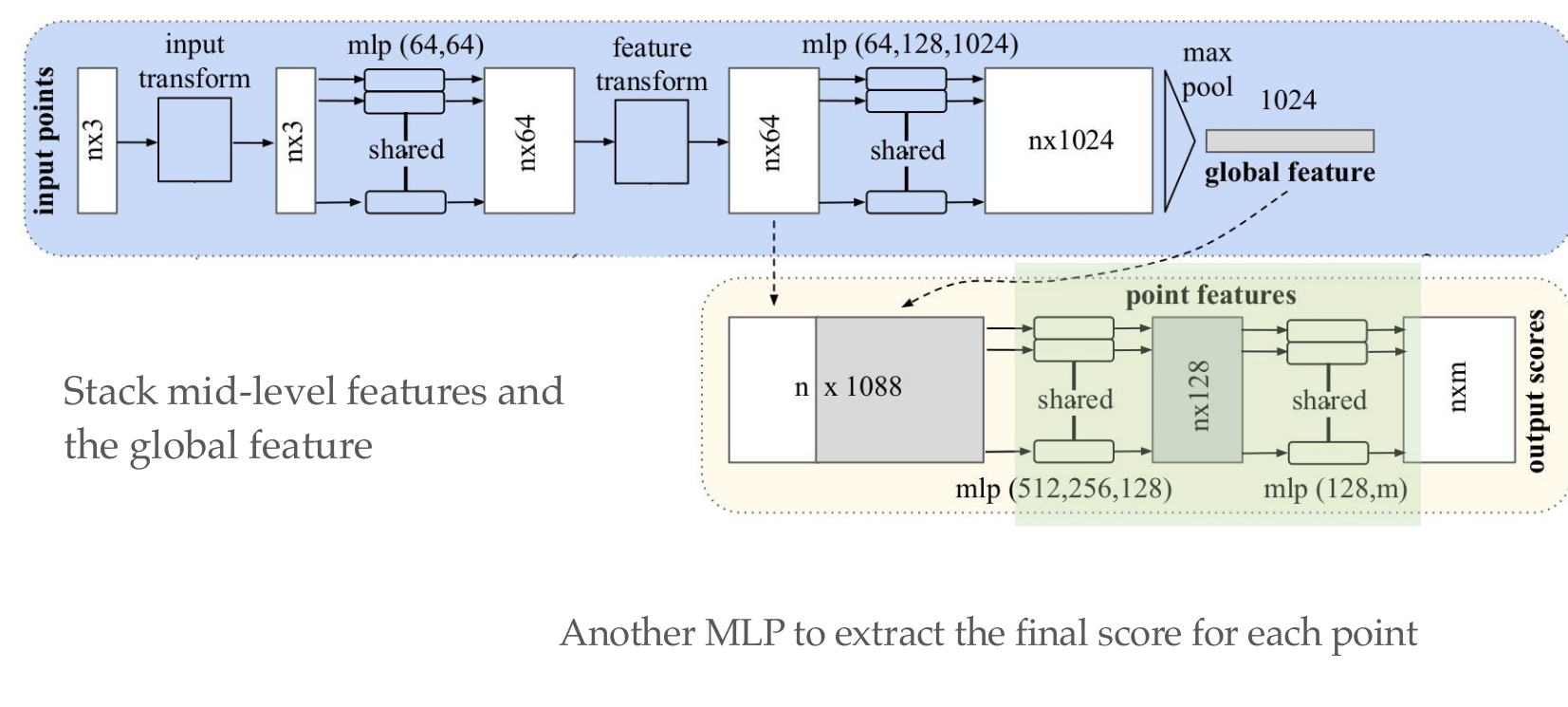

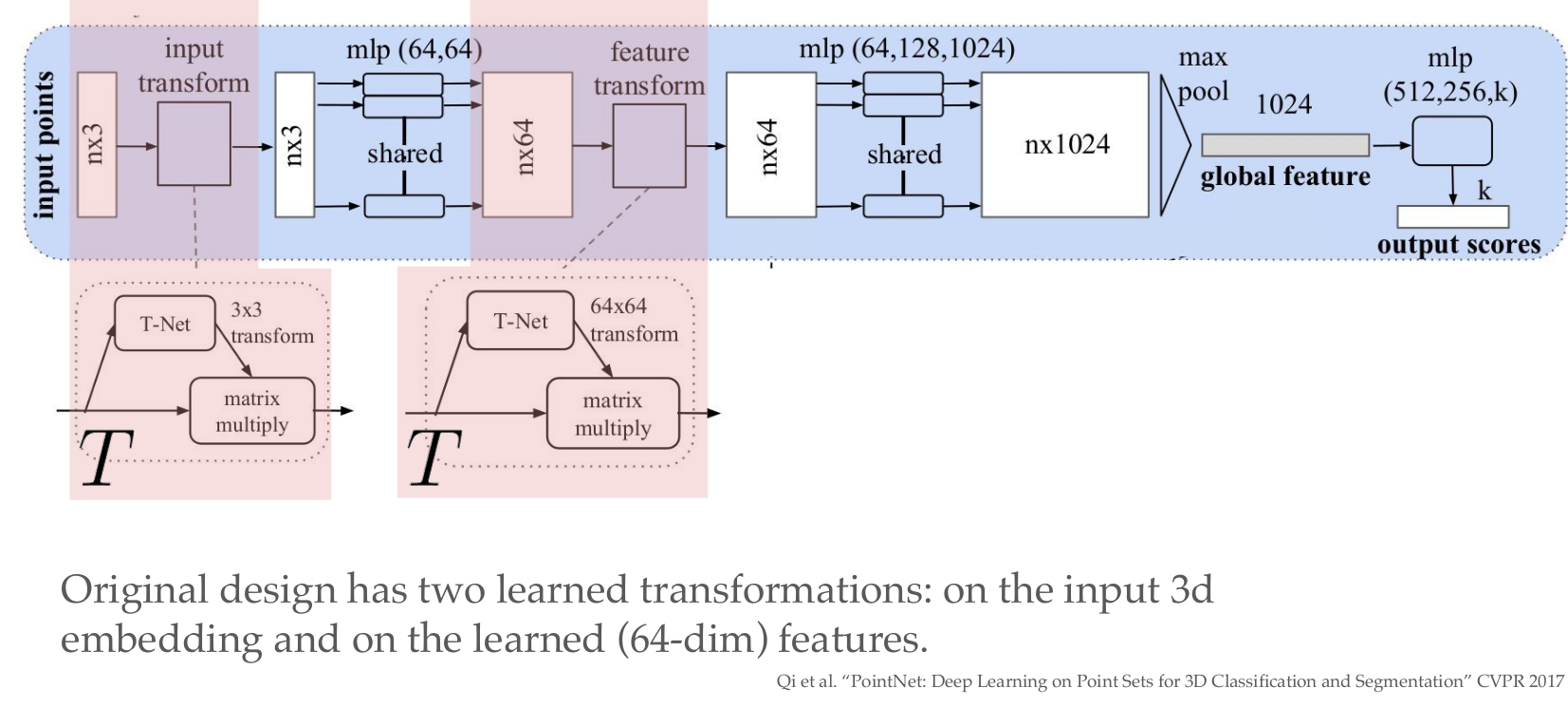

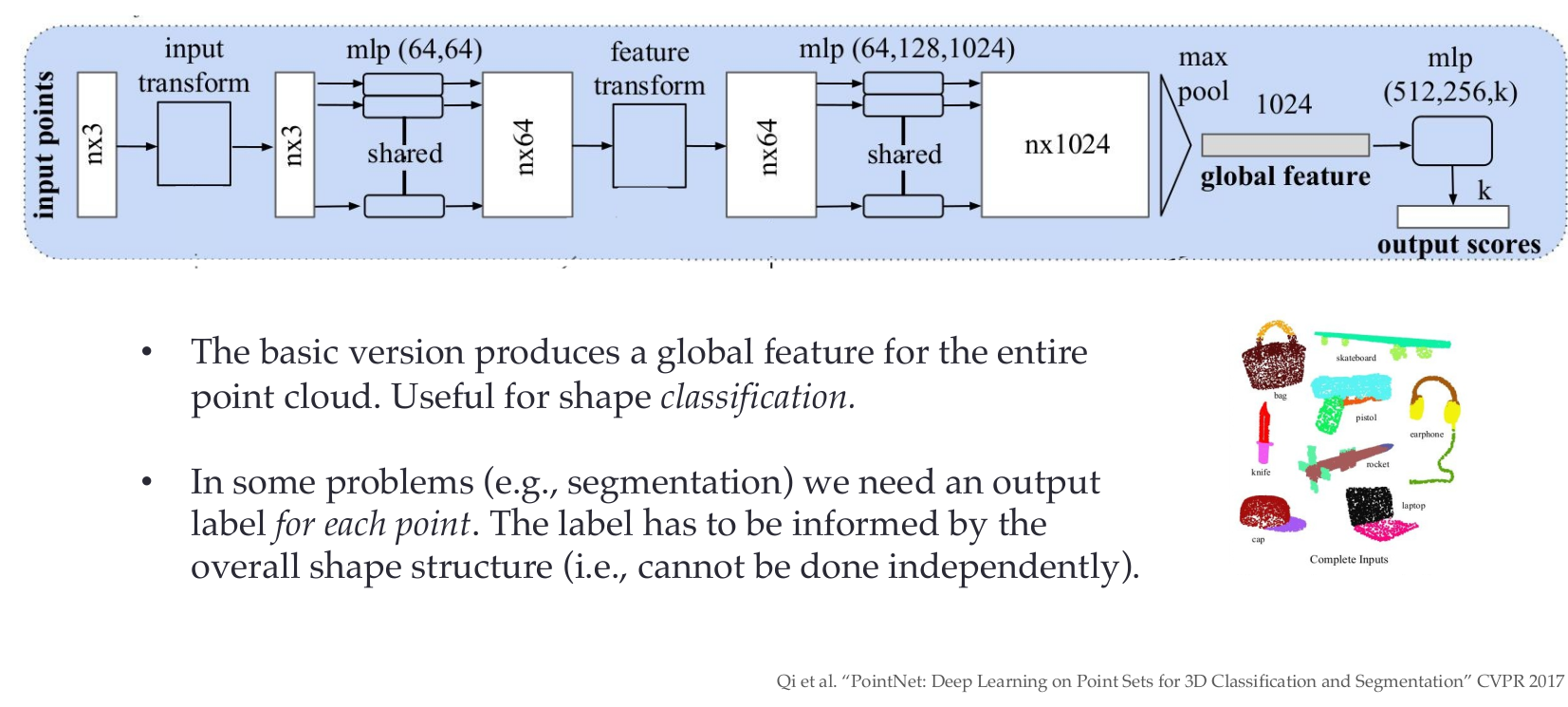

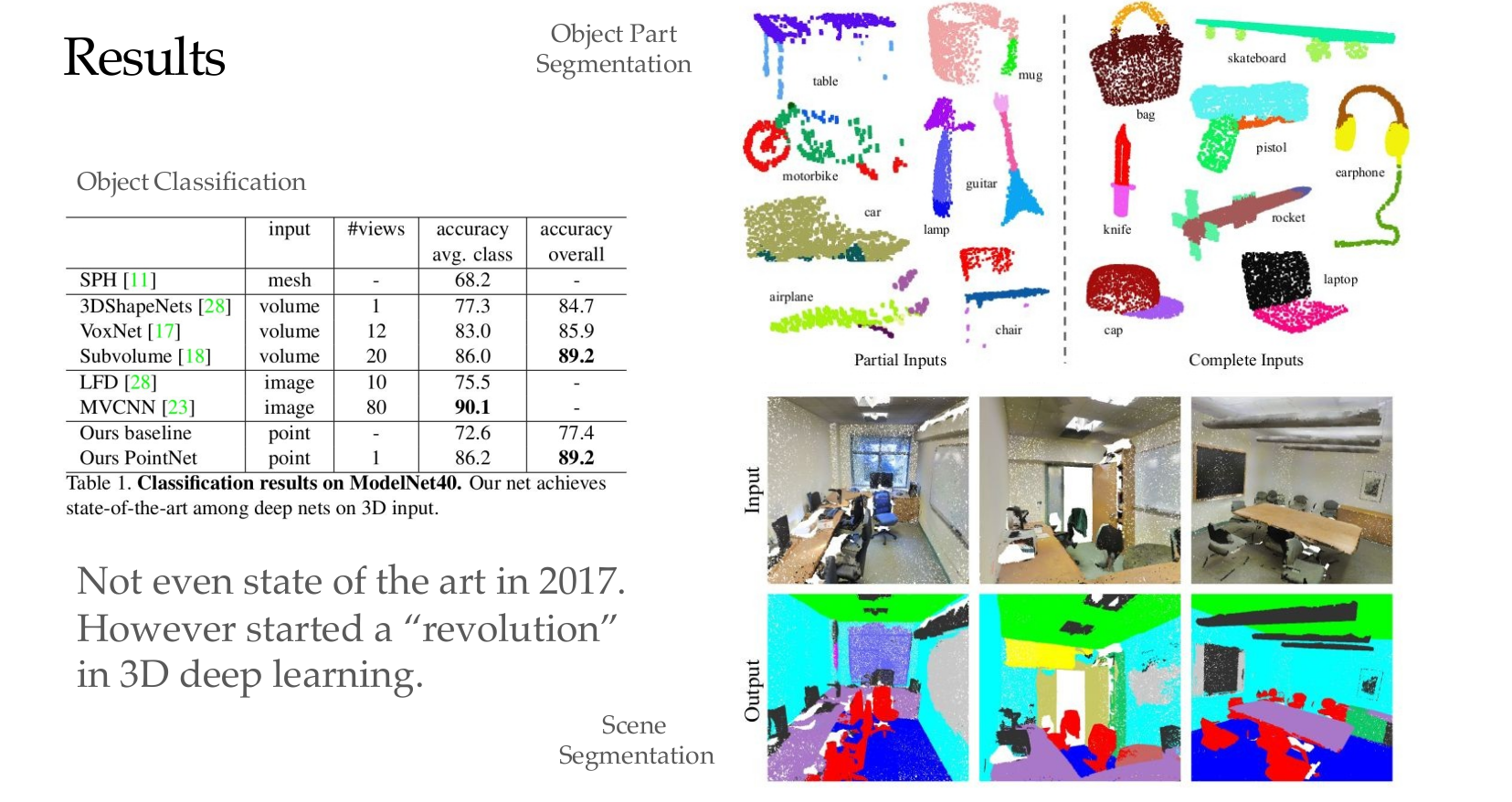

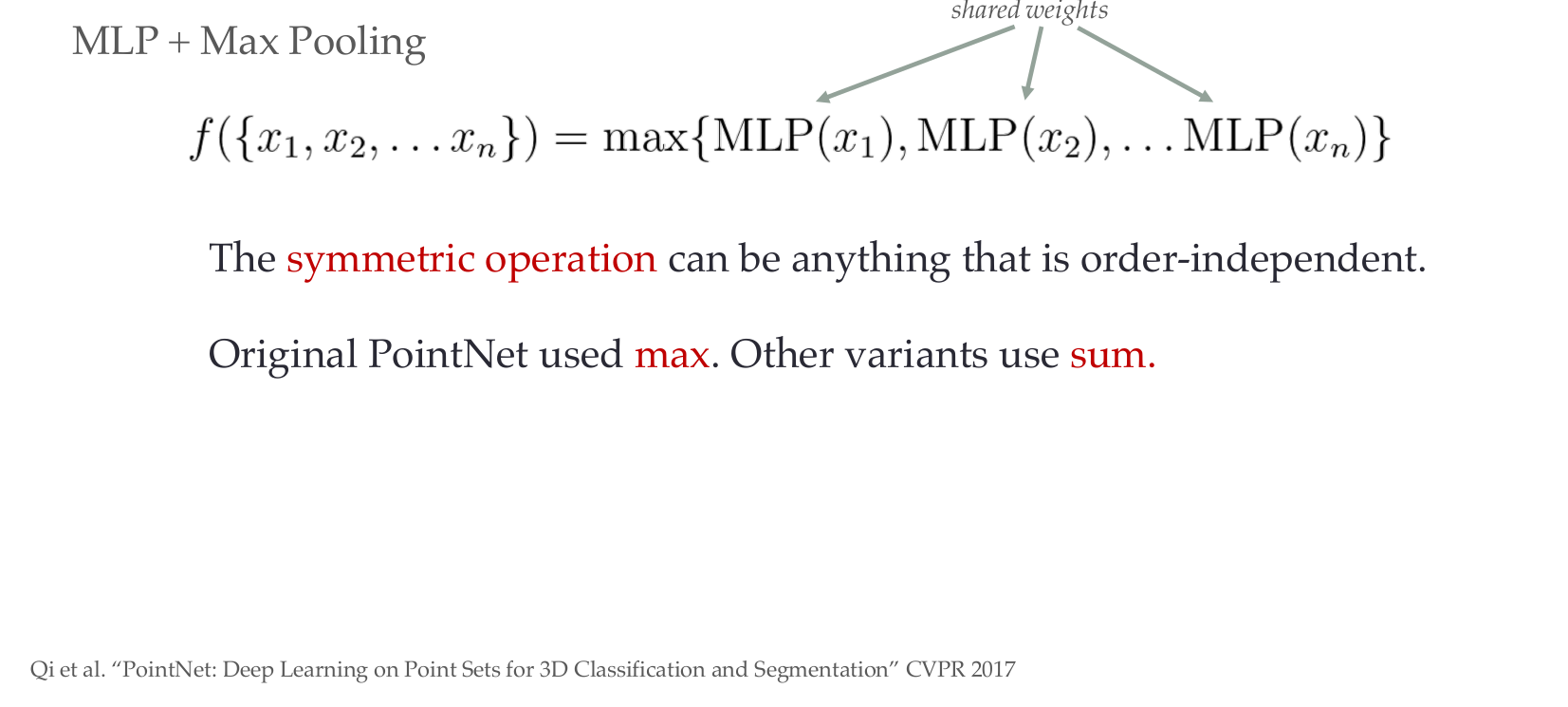

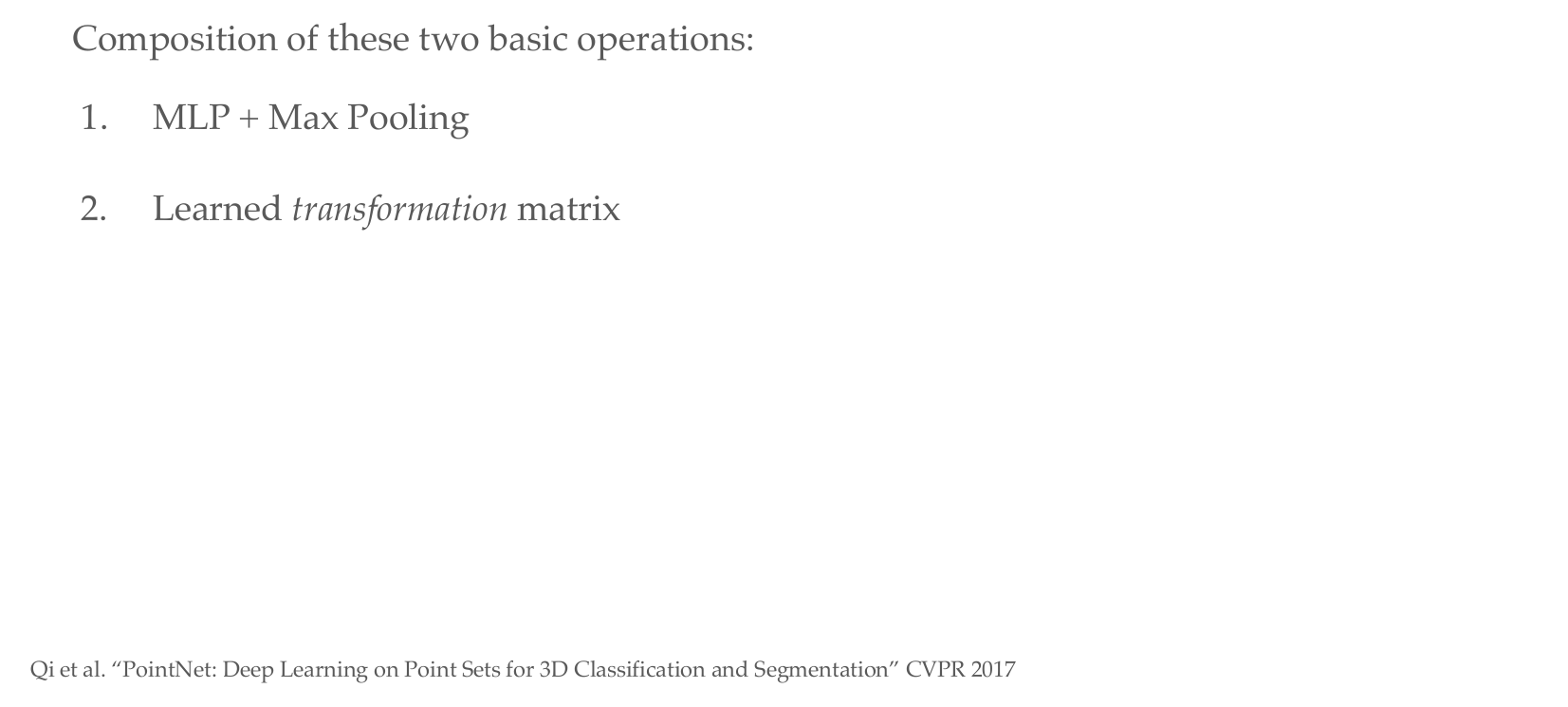

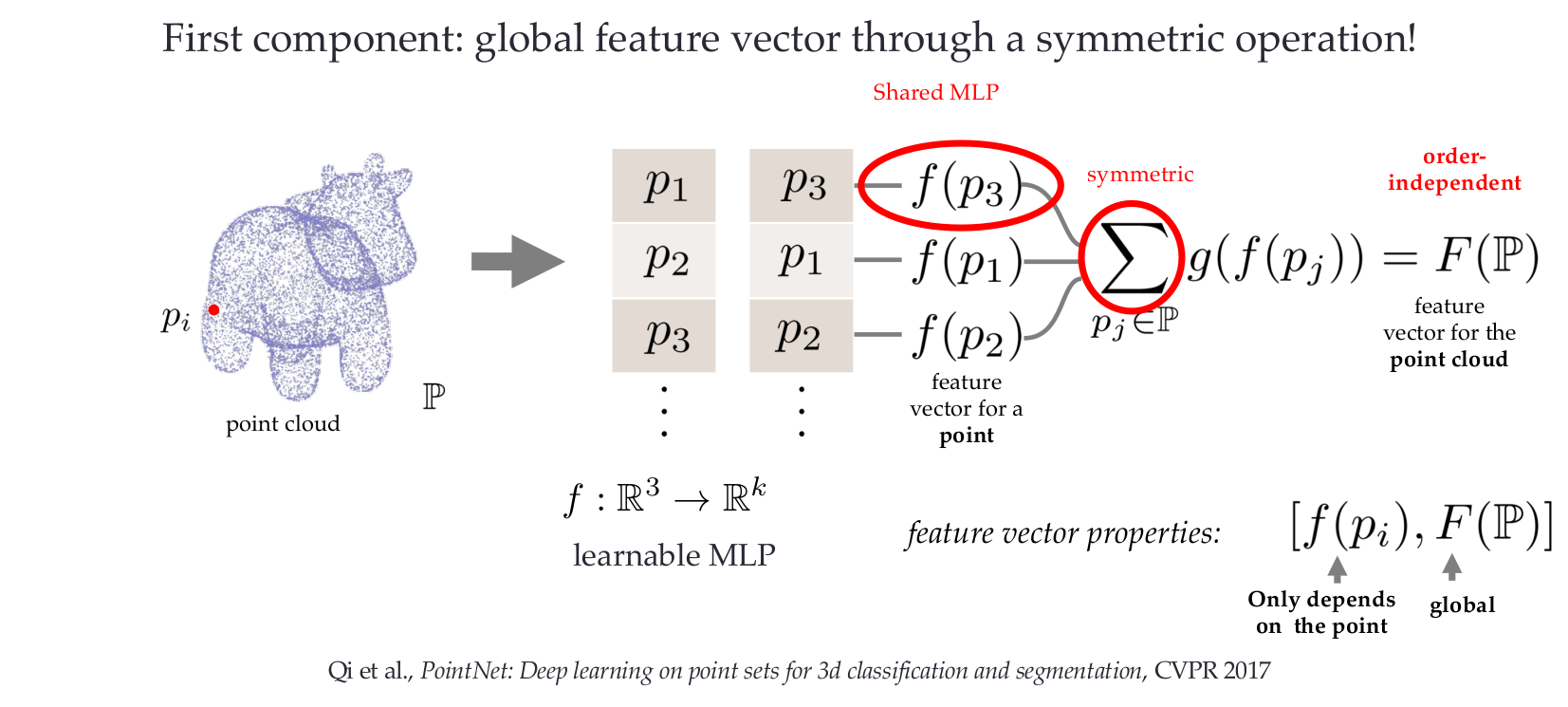

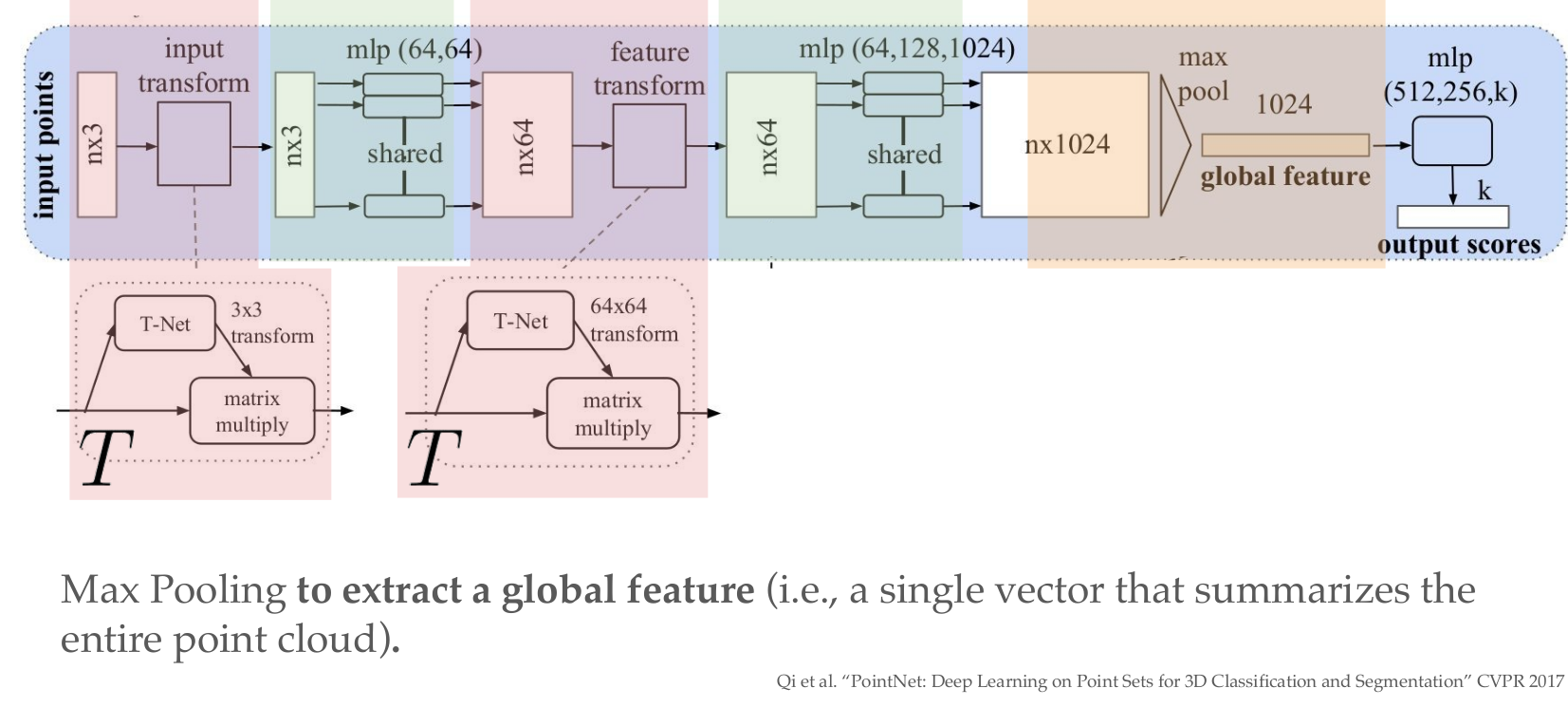

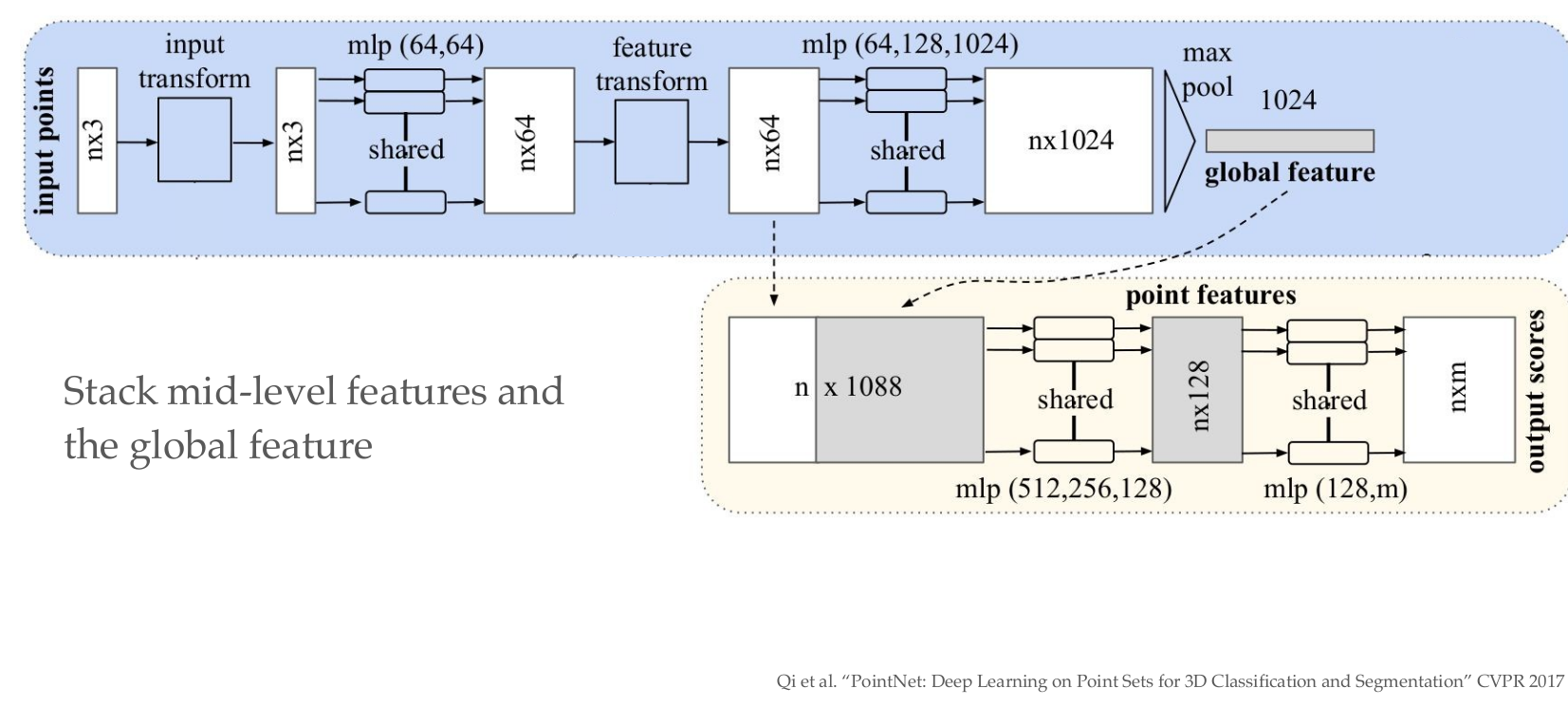

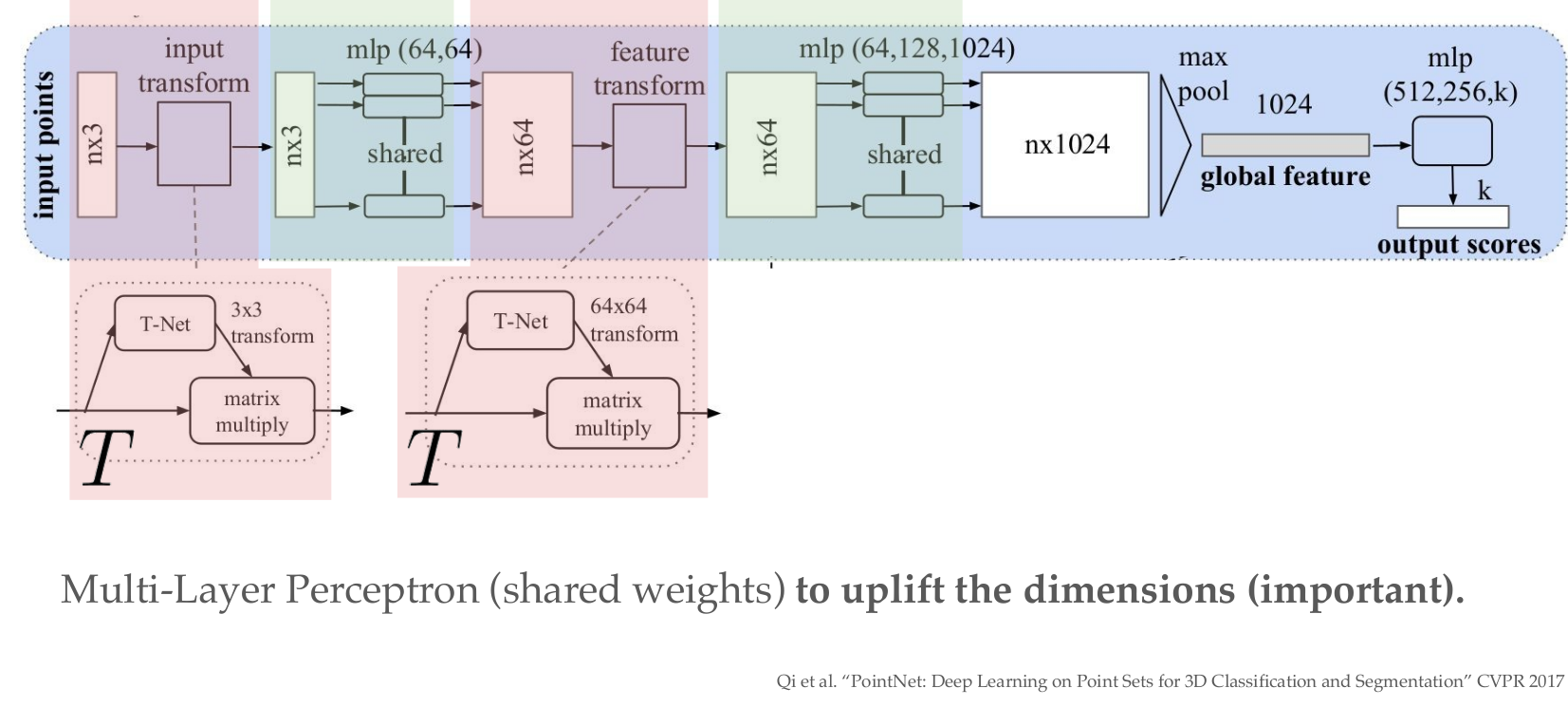

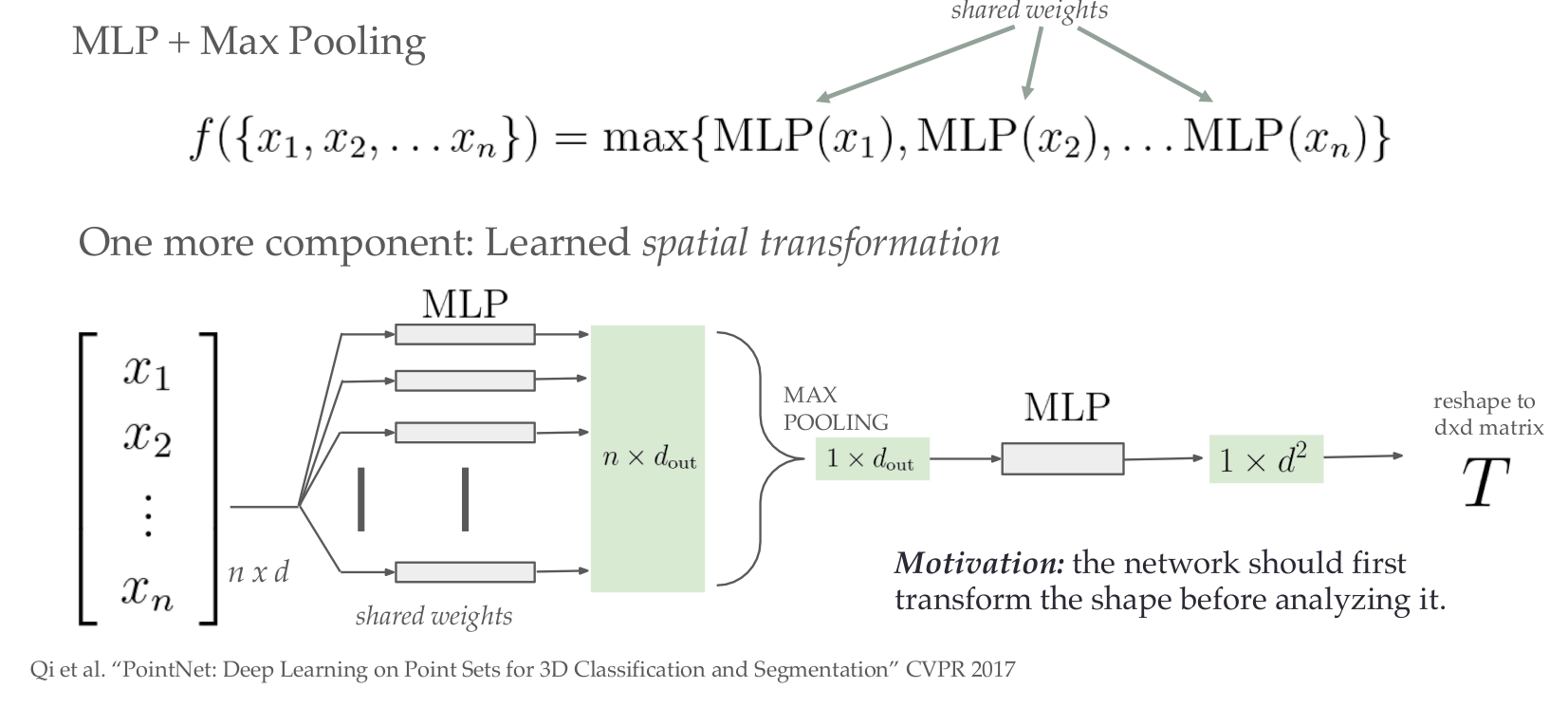

PointNet

Improving PointNet

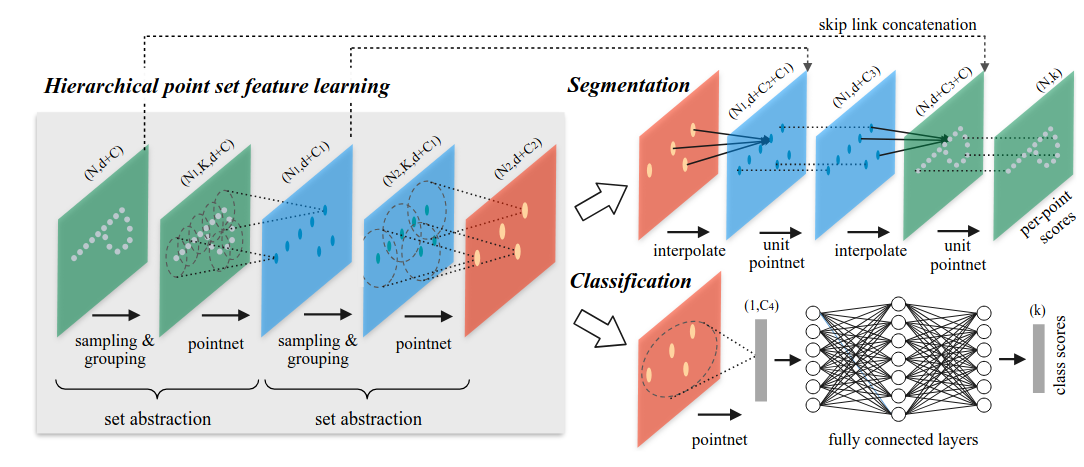

PointNet++ architecture

And more…

Many works have tried to tackle this problem, including :

KPConv (2018)
DGCNN (2018)
PointTransformer (2020)

Current state-of-the-art: PointTransformer v3 (2024). However, research remains active in this area.

Applications to non-rigid shapes (faces)

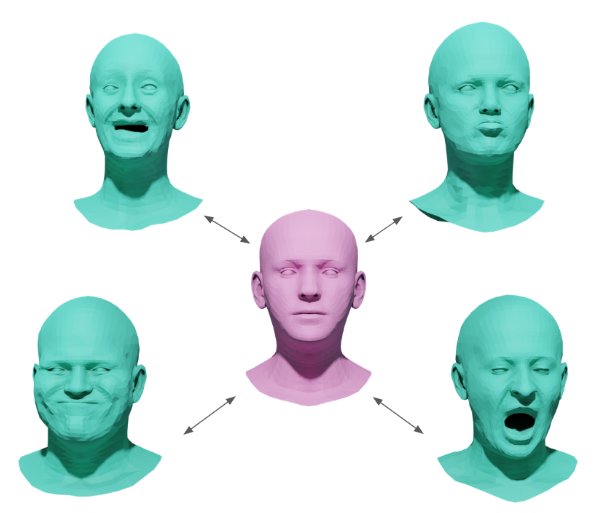

Morphable model of faces

Applications to non-rigid shapes (faces)

Simple model, Besnier et al. 2023

Applications to non-rigid shapes (faces)

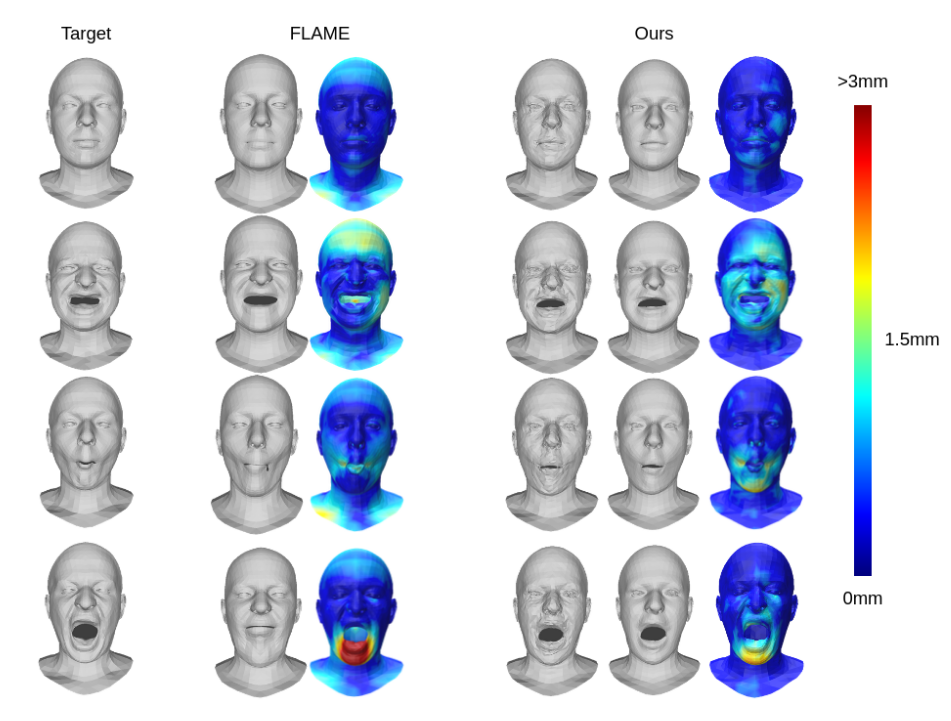

Comparisons against FLAME morphable model

Applications to non-rigid shapes (faces)

Reconstruction of unregistered faces

Summary: PointNet and variants

Advantages

Invariant to permutation
Robust to parameterization
As expressive as MVCNNs, with less computation power

Disadvantages

Ignores the structure of data!
Robust != invariant

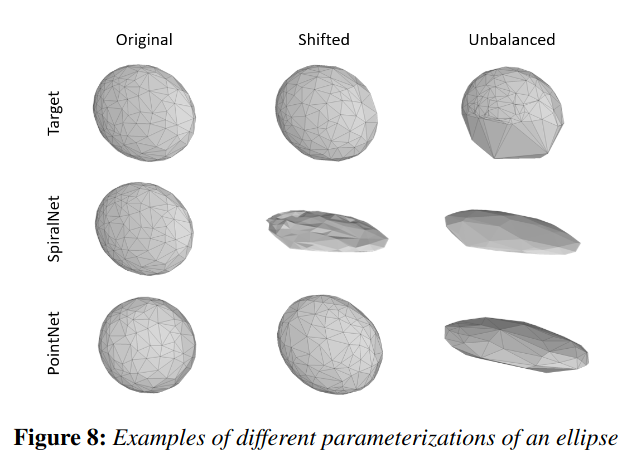

Parameterization: extreme cases

Robustness to parameterizations

PointNet is not robust to extreme cases of reparameterizations (Besnier et al. 2022)

Exploiting the structure of data

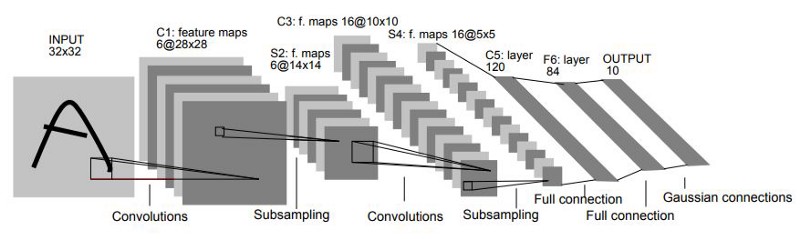

Le-Net 5 architecture, 1999

Convolutions exploits the structure of data! Can we apply them to 3D?

-> This field have been very active. We will cover only two solutions.

Exploiting the structure of data

Two cases:

We want to deform a template mesh -> no need for permutation invariance
We want to learn on arbitrary parameterizations -> need for permutation invariance

Spiral convolutions

Let \(x\) be a mesh vertex, \(R^d(x)\) be the d-ring, \(R^d_j(x)\) denotes the jth element in the d-ring. The spiral patch operator is defined as: \[ S(x) = \{x, R^1_1(x) R^1_2(x),..., R^h_{|Rh|}(x)\} \] The spiral convolution of a signal \(f\), with a filter \(g\) is defined by: \[ (f \ast g) = \sum_{\ell=1}^{L} g_{\ell}\, f\!\left(S_{\ell}(x)\right) \]

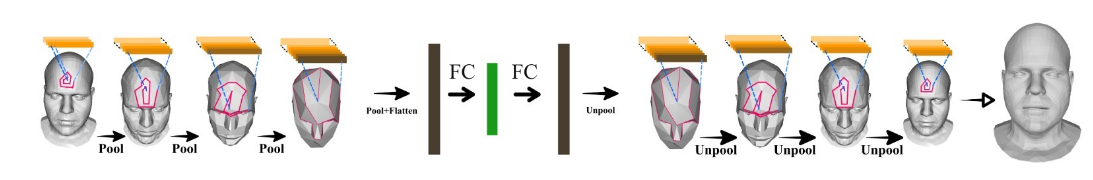

Spiral convolutions: auto-encoder

The pooling is done using mesh downsampling like in CNNs. The features are extracted in a hierarchical way!

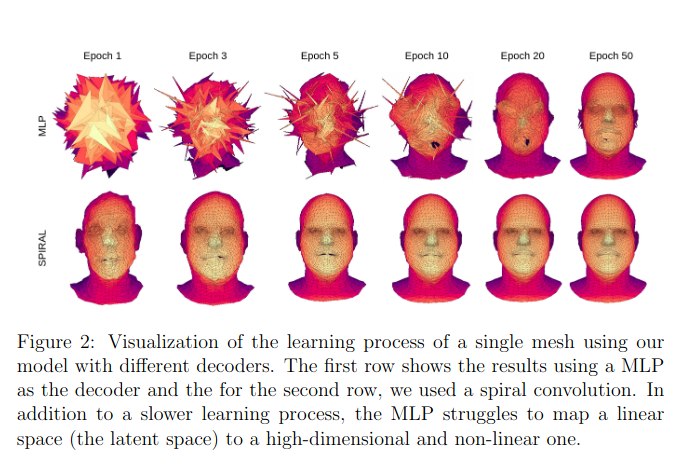

Spiral convolutions: efficiency

Parameterization invariance

Robustness to parameterizations

SpiralNet is not robust to reparameterizations (Besnier et al. 2022)

More mesh graph convolutions

MeshCNN
ChebNet
Geodesic CNNs
Gauge equivariant CNNs

and more …

Summary: SpiralNet (and mesh graph convolutions)

Advantages

Takes in account structure of data (mesh graph)
Parameter and implementation efficient

Disadvantages

Not robust to reparameterizations
No generalization to new types of shapes

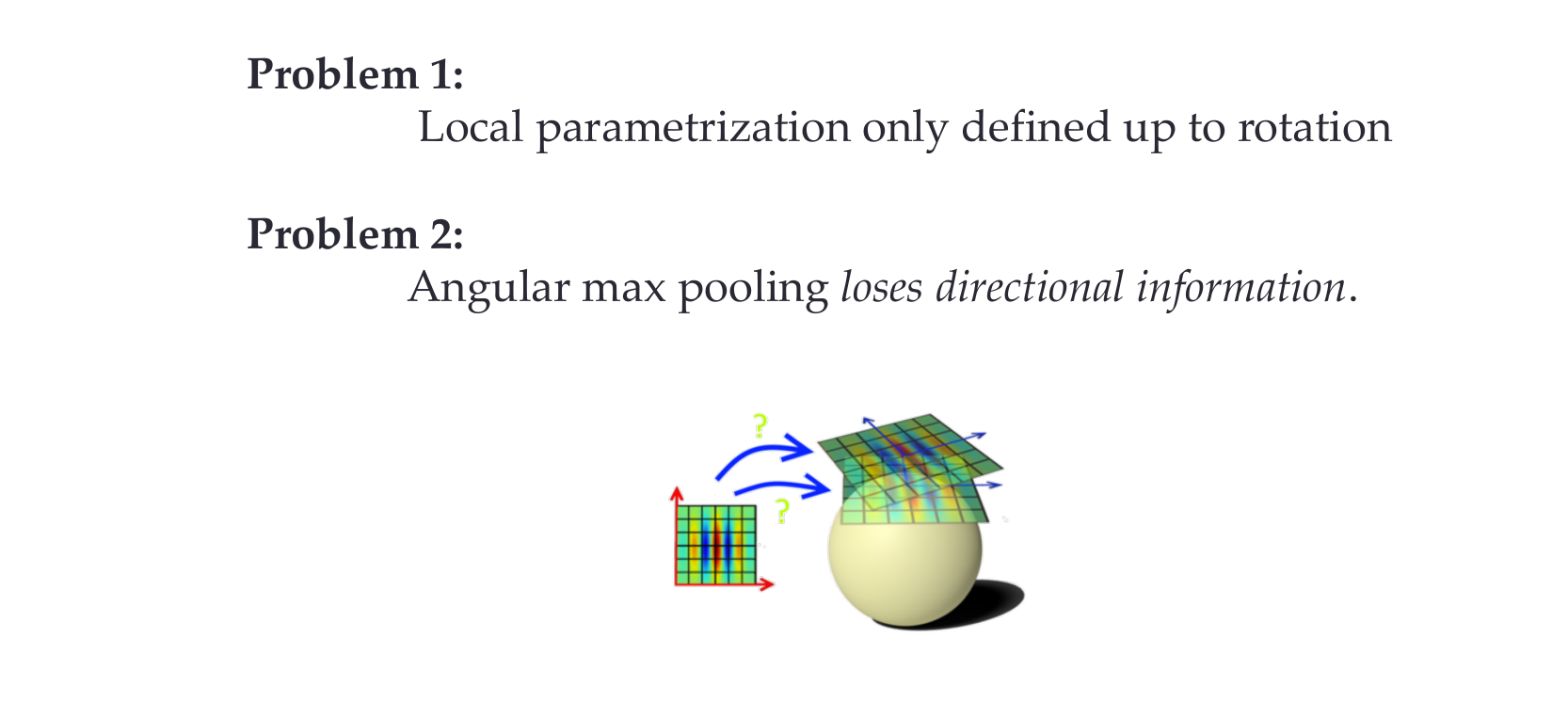

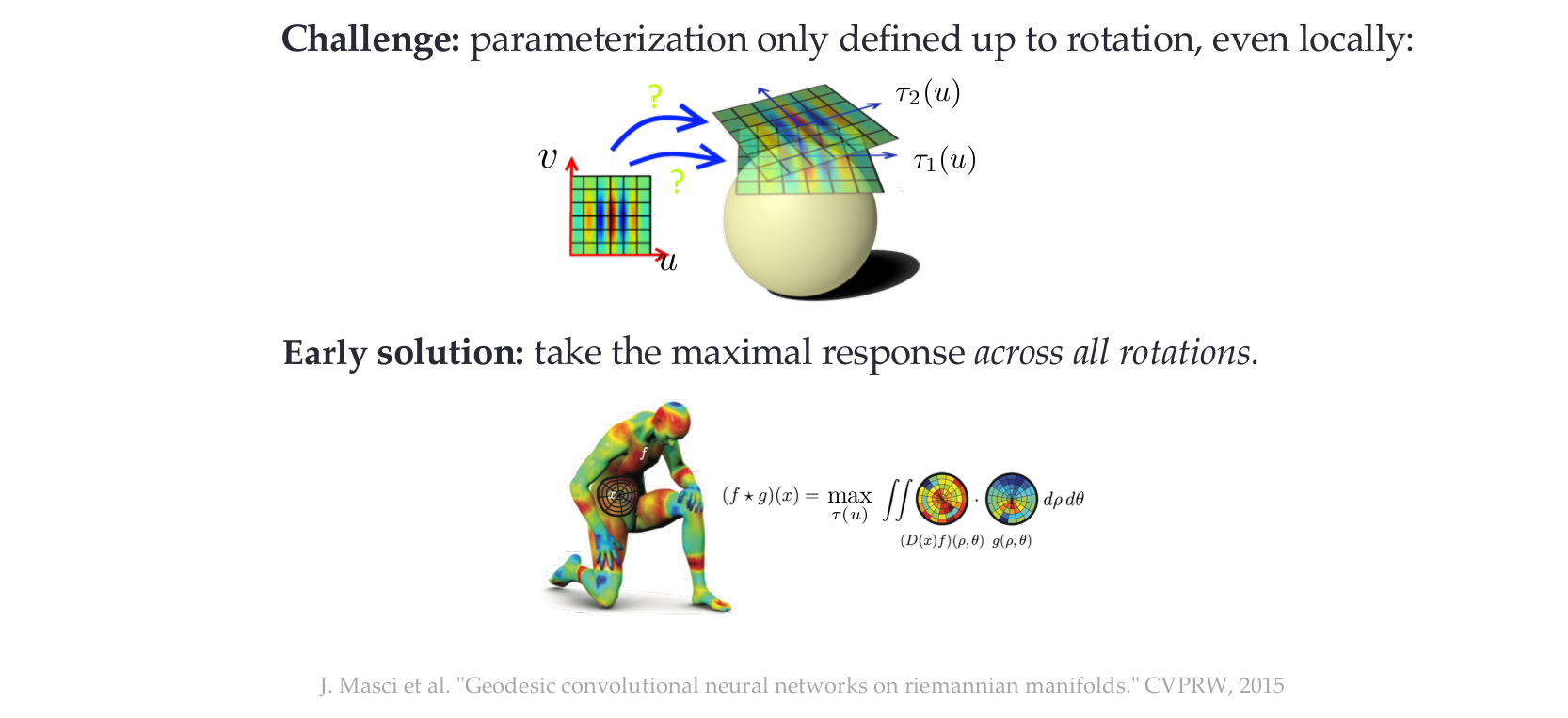

Naïve parameterization robust convolutions

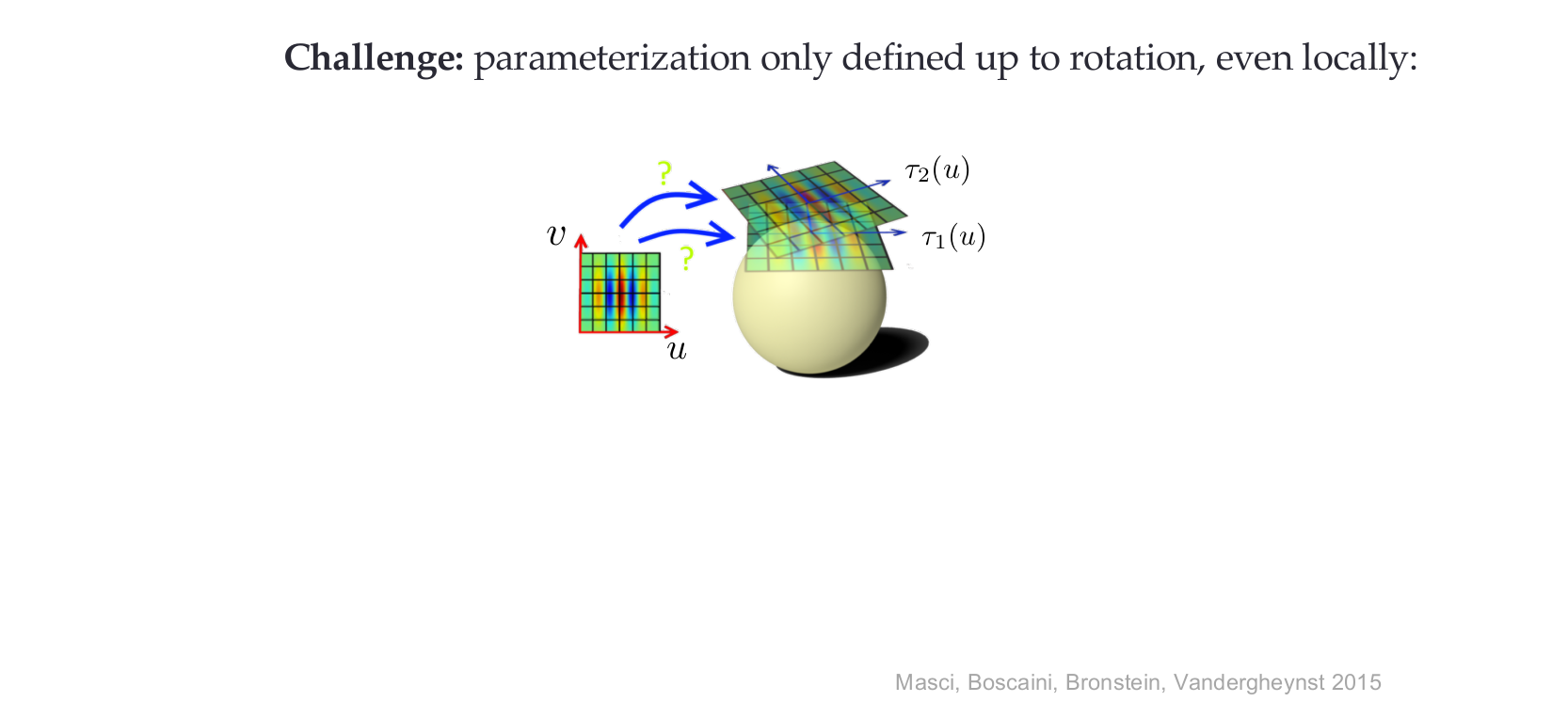

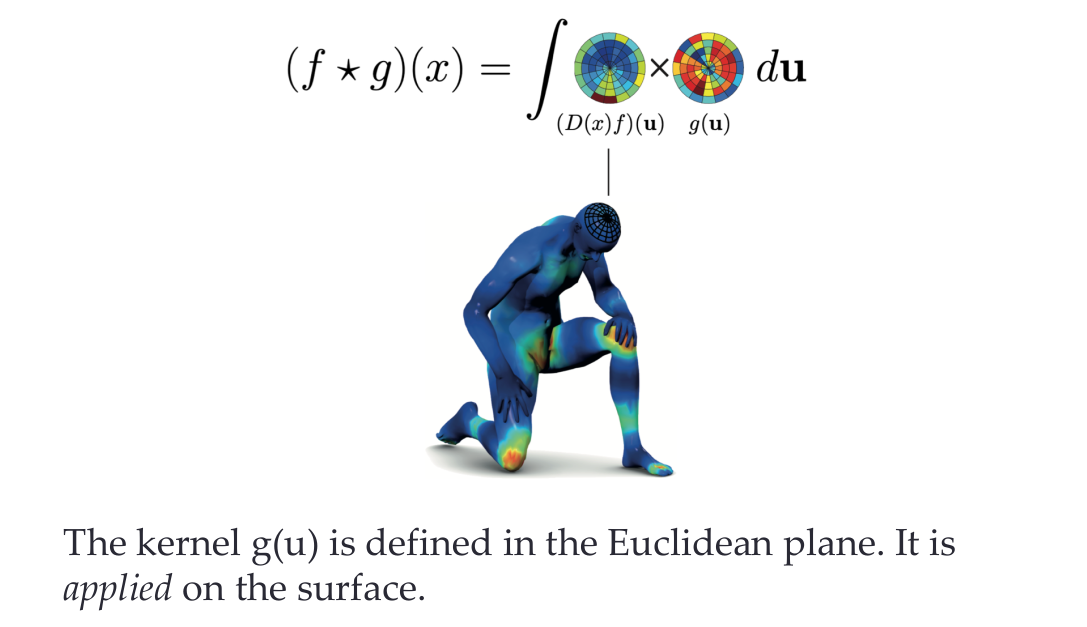

Idea: Define a parameterized convolutions and apply it to patches (Geodesic CNNs).

Problem: Need to define the patch integration (costly)

Naïve parameterization robust convolutions

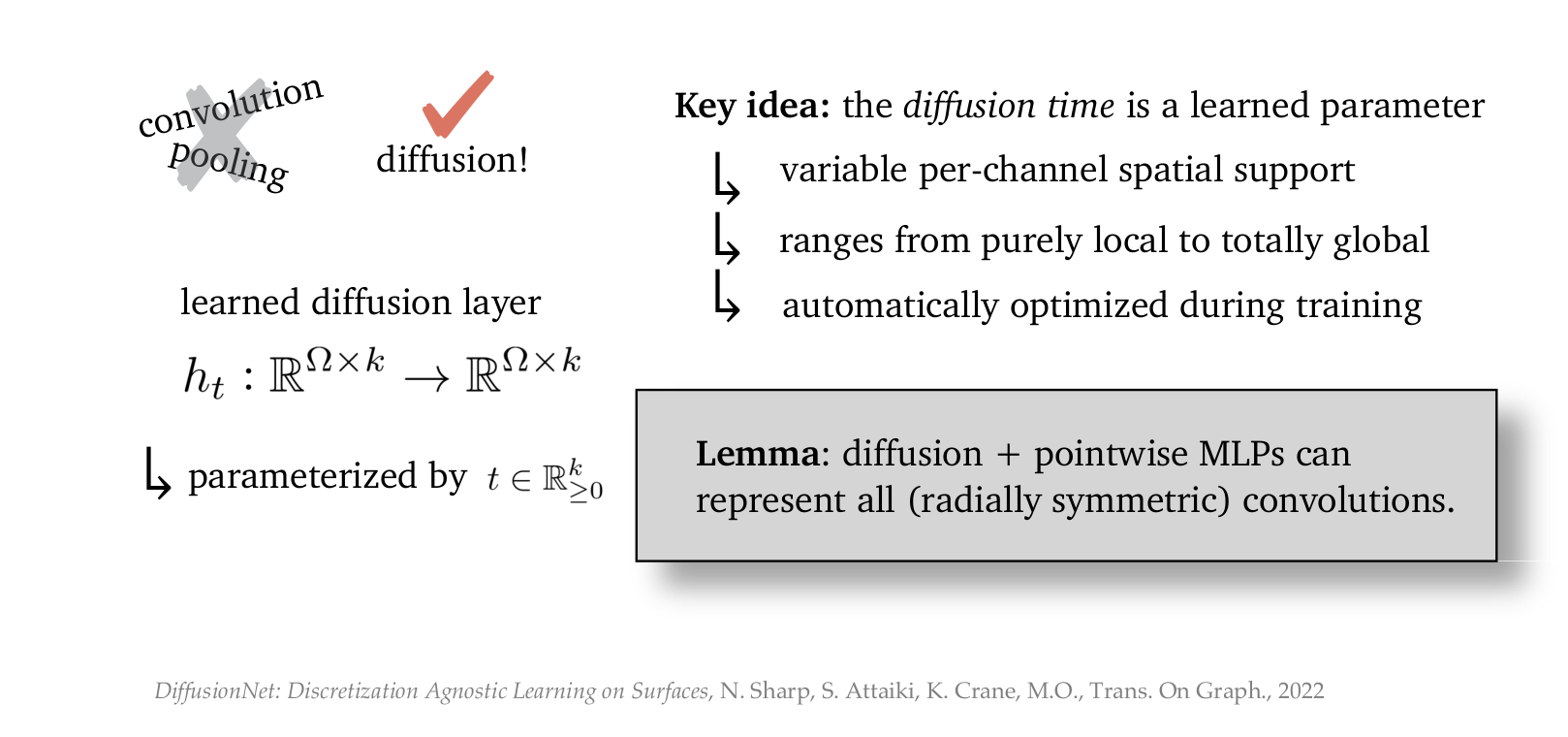

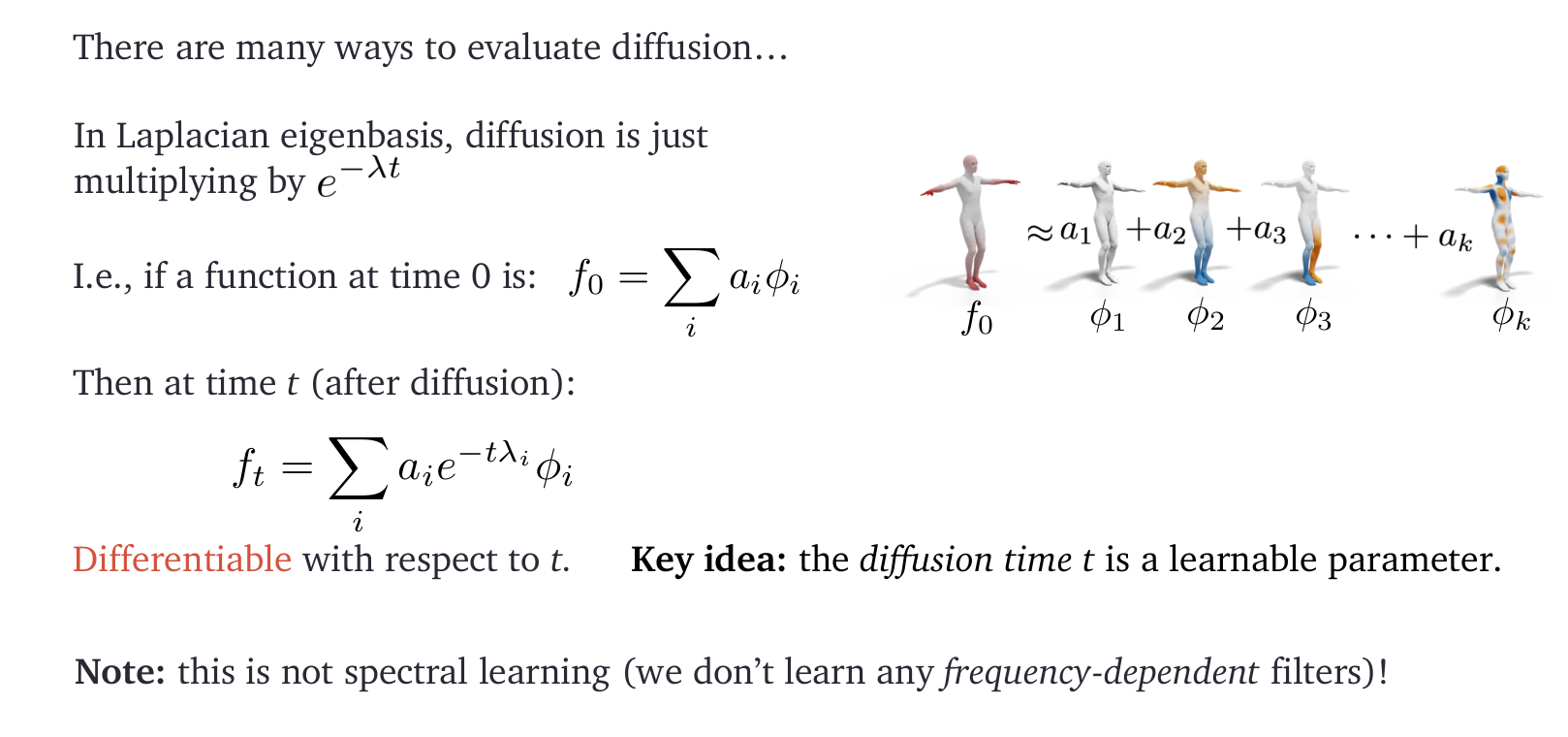

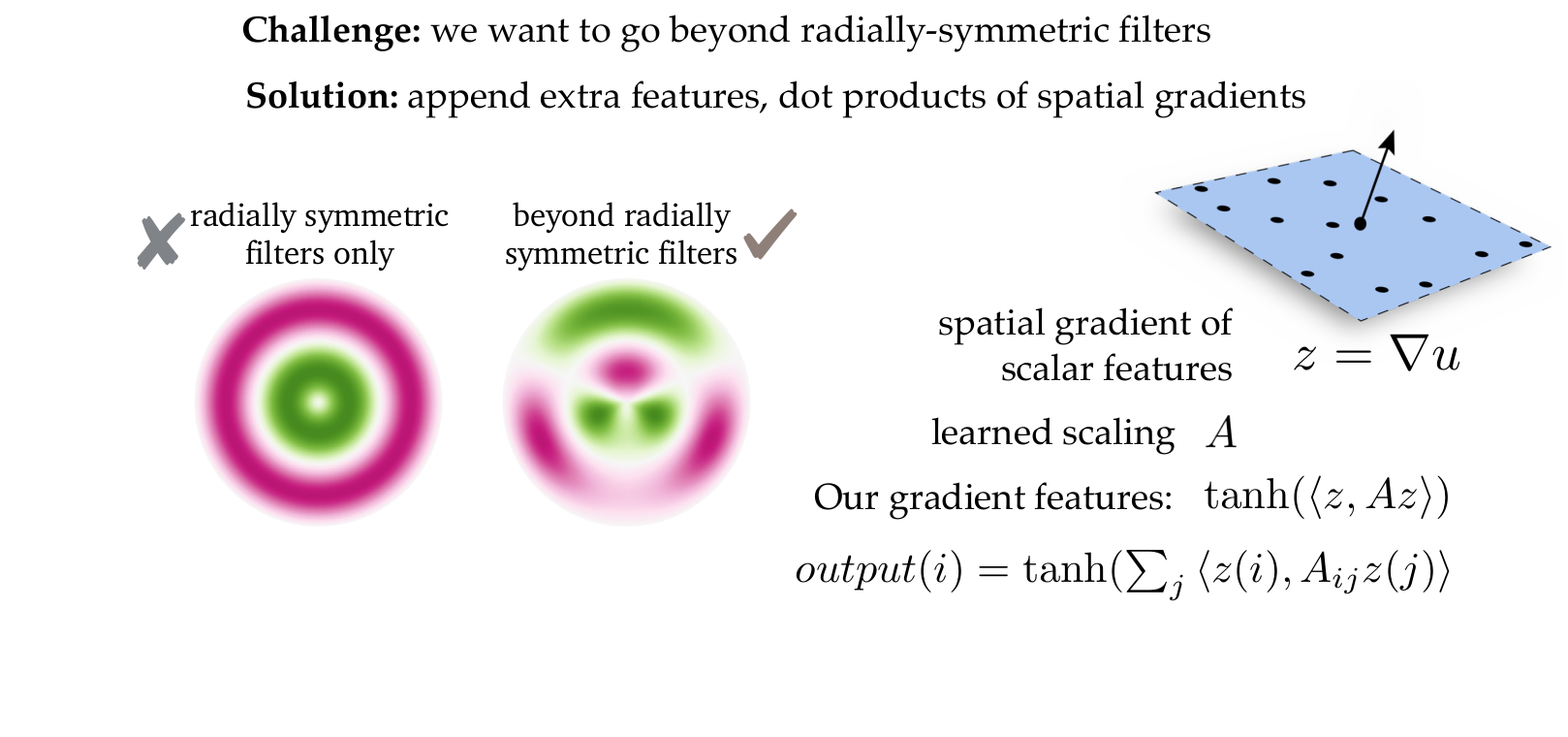

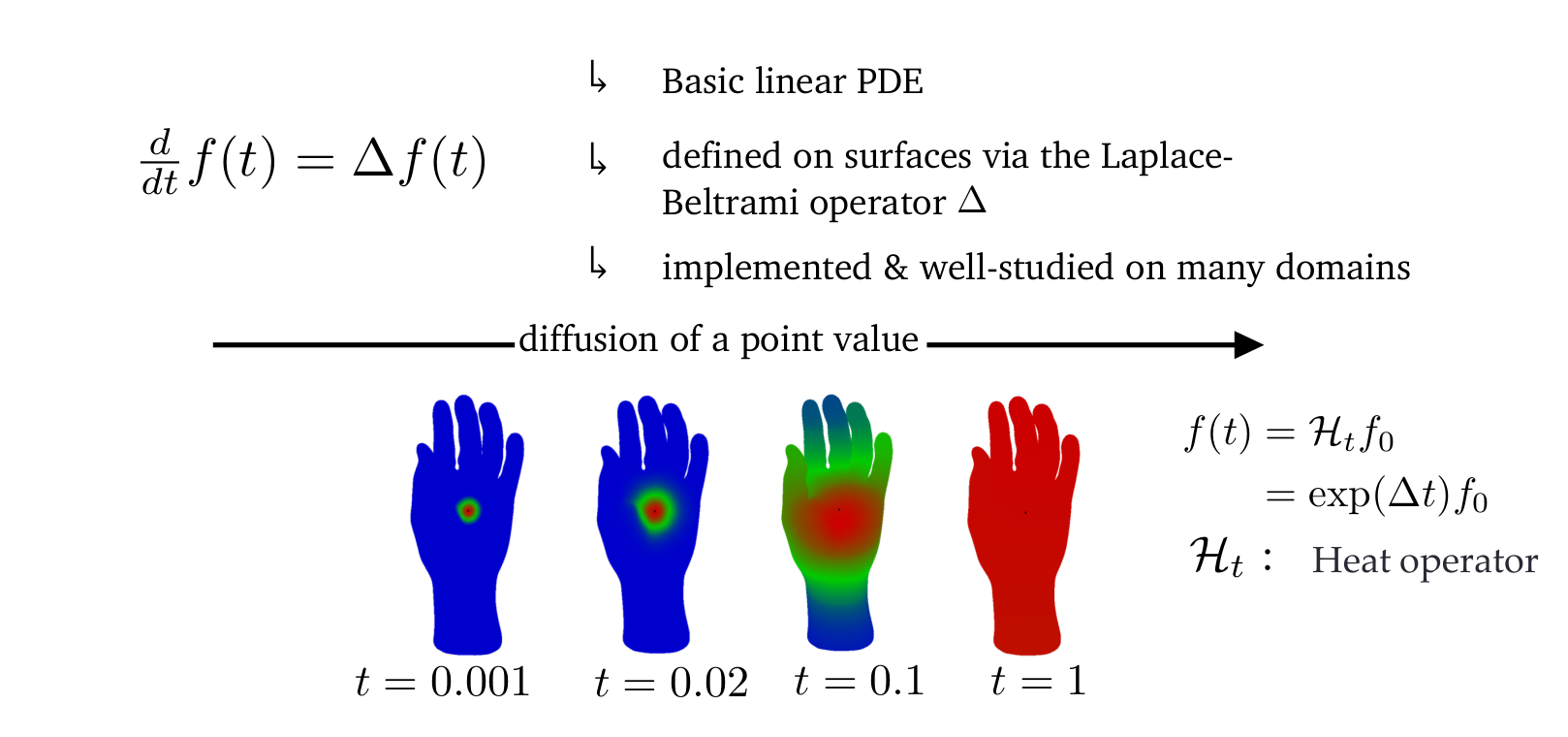

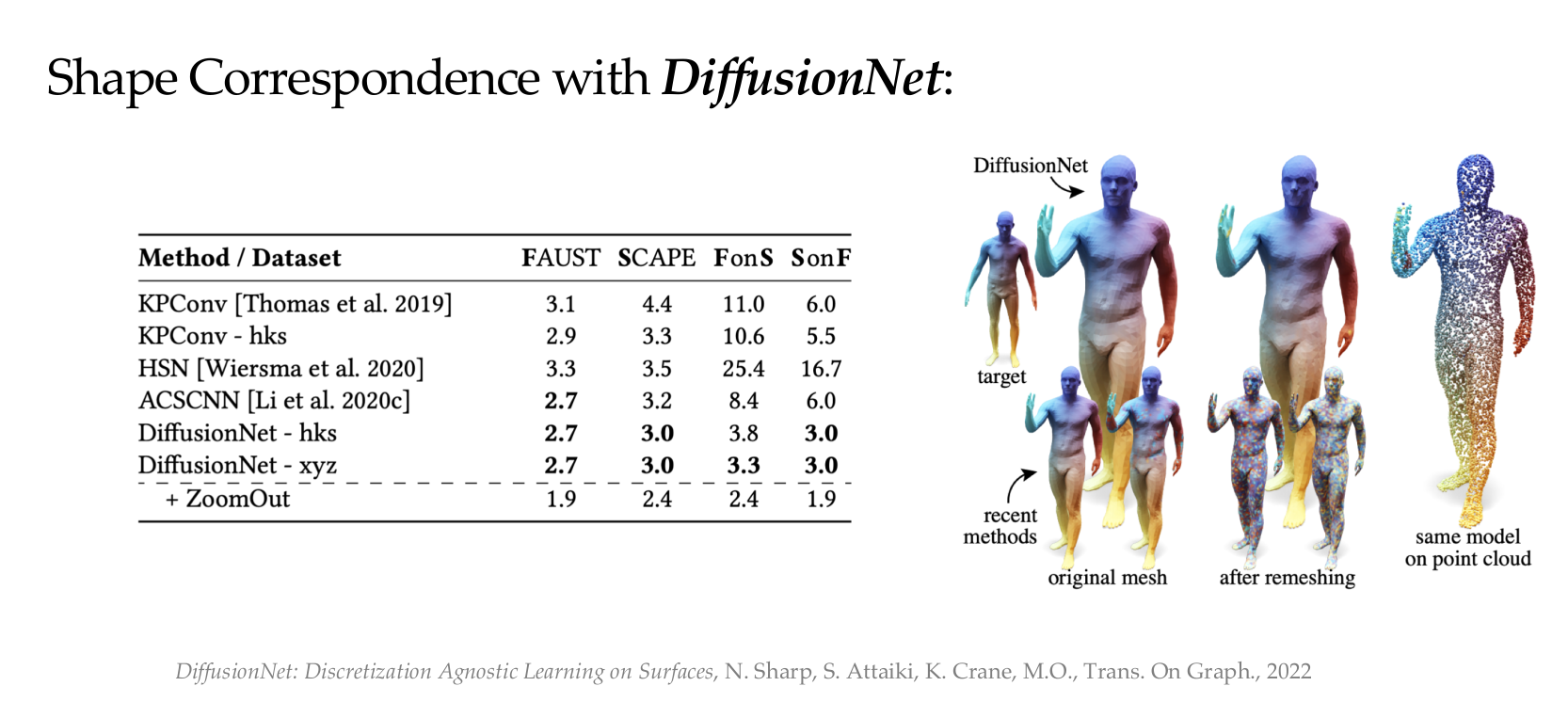

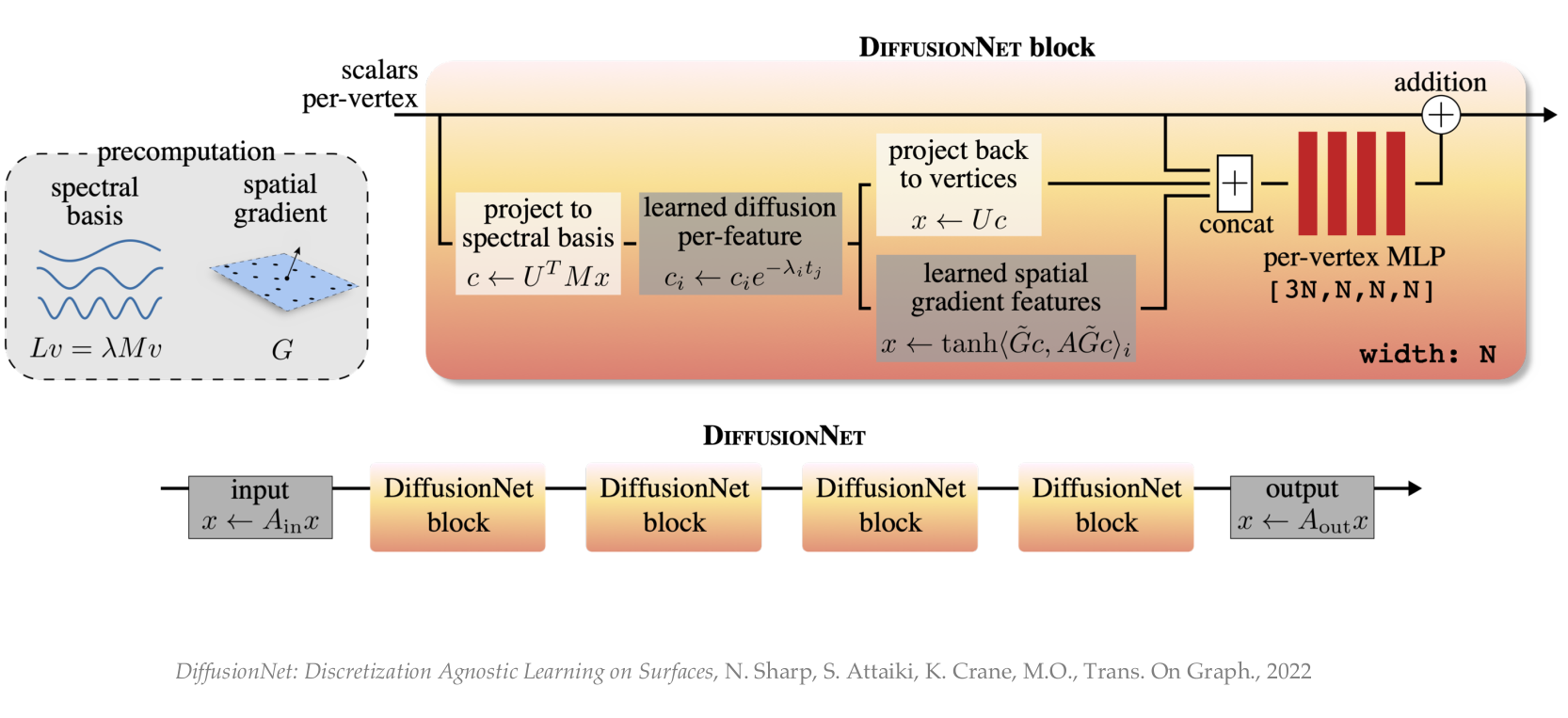

DiffusionNet

DiffusionNet: summary

Advantages

Takes in account structure of data (surface)
PLe-Net 5 architecture, 1999arameter and implementation efficient
Robust++ to reparameterization

Disadvantages

Preprocessing on large meshes
Not suitable for large scale data

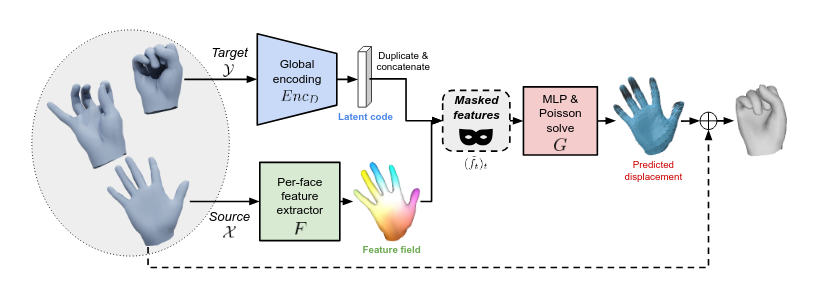

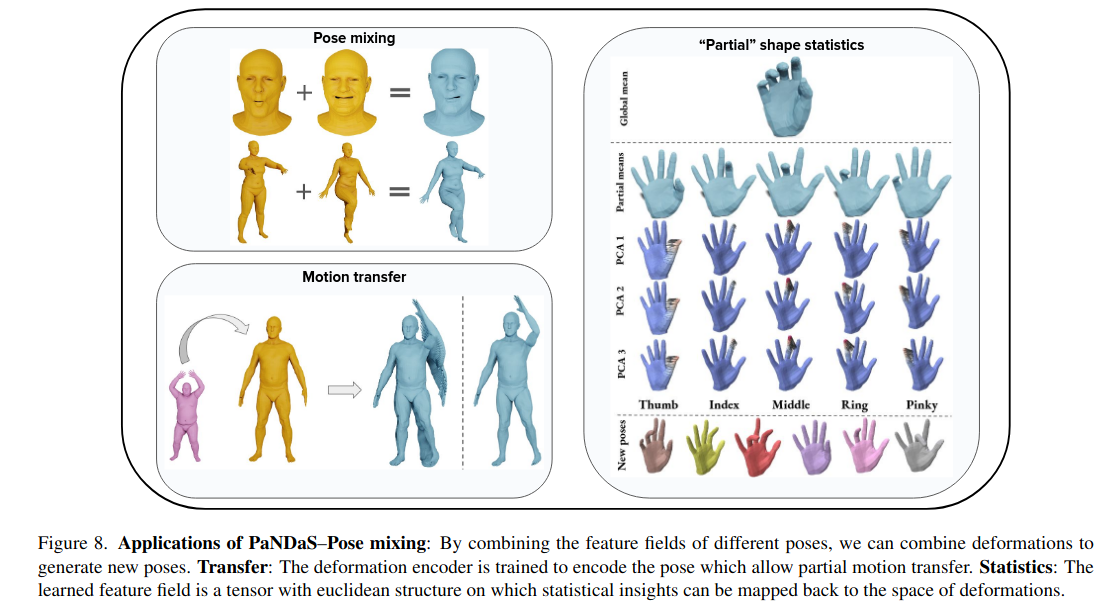

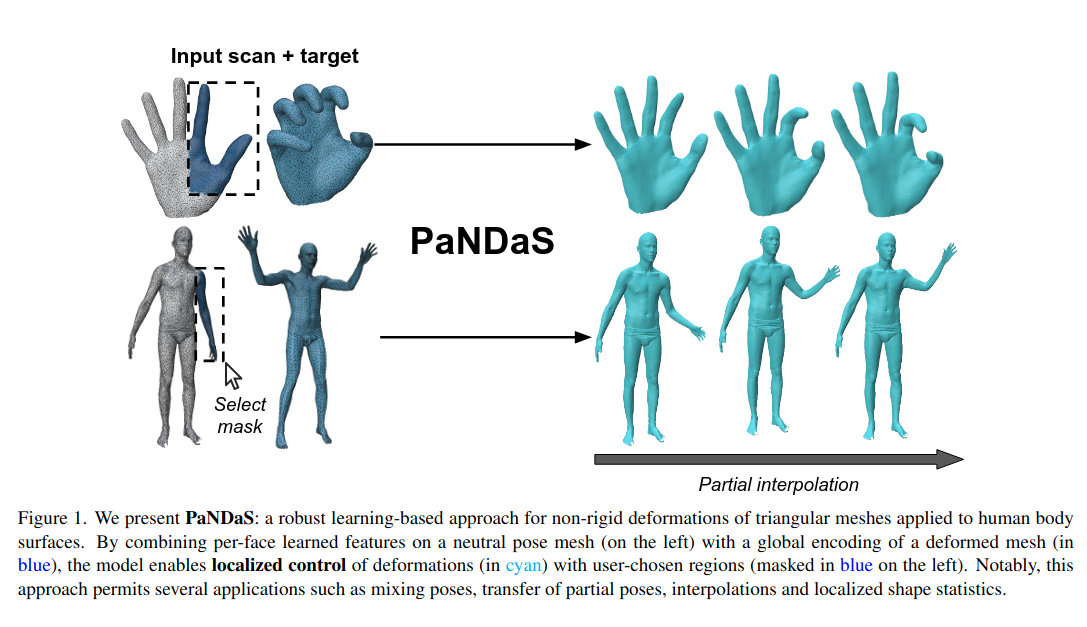

Applications: local deformations of shapes

Conclusion: geometric deep learning for what?

Geometric deep learning is the field of research that tries to apply the success of deep learning to non-euclidean data.

In the specific case of non-rigid shapes, it is used successfully for:

Shape classification
Shape segmentation
Shape matching
Shape deformation

What we have ignored

Other types of non-euclidean data (graphs, proteins, …)
Tasks specific losses (e.g. Chamfer distance, varifolds, …)
Alternative shape representations (SDFs, …)
Tasks specific representations (e.g. functional maps)
Modern architectures (Transformers!!!!)

The large scale era

Modern tasks

Generation from text or images
Detailed understanding
Multimodality

Multi view strikes back!

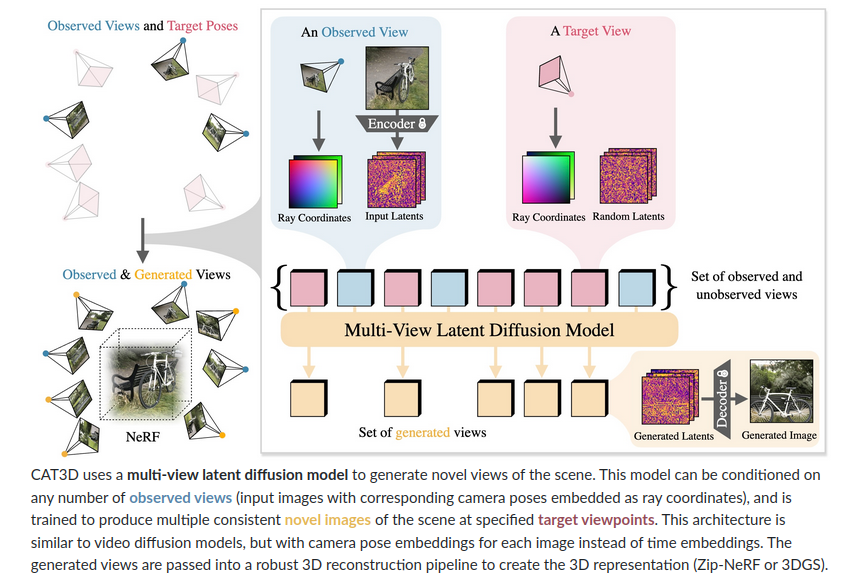

Overview of CAT3D

Multi view strikes back!

Volumetric strikes back!

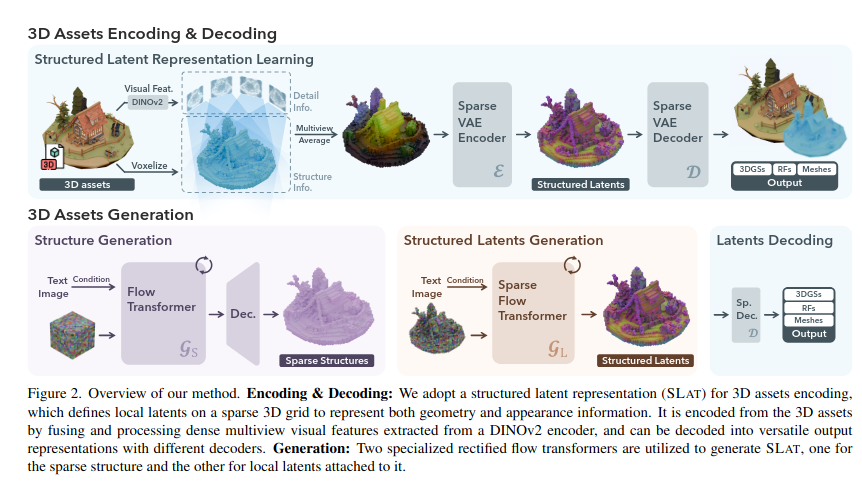

Overview of TRELLIS

Multimodality

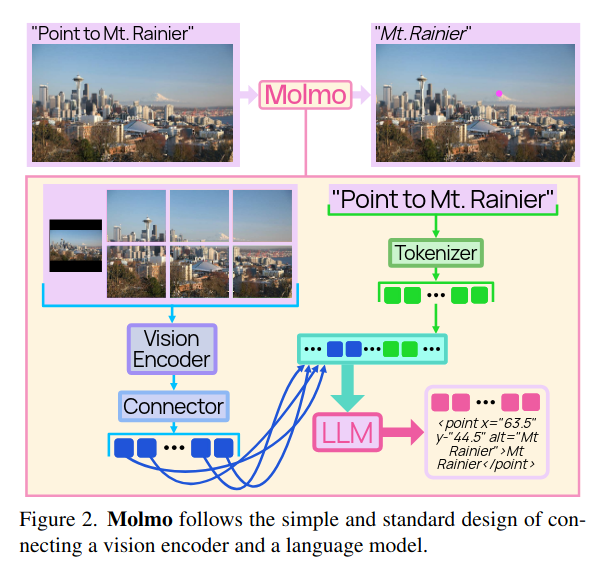

Overview of Molmo

Multimodality

Transformers are able to learn (partly) the underlying structure of data with the attention mechanism. They can be applied in any context.

Open questions

Can we generalize generation results to non-rigid shapes ?
How to tokenize efficiently a point cloud or a surface?
Should we let transformers learn the structure of data or enforce prior knowledge?
