Non rigid diffusion, last experiments

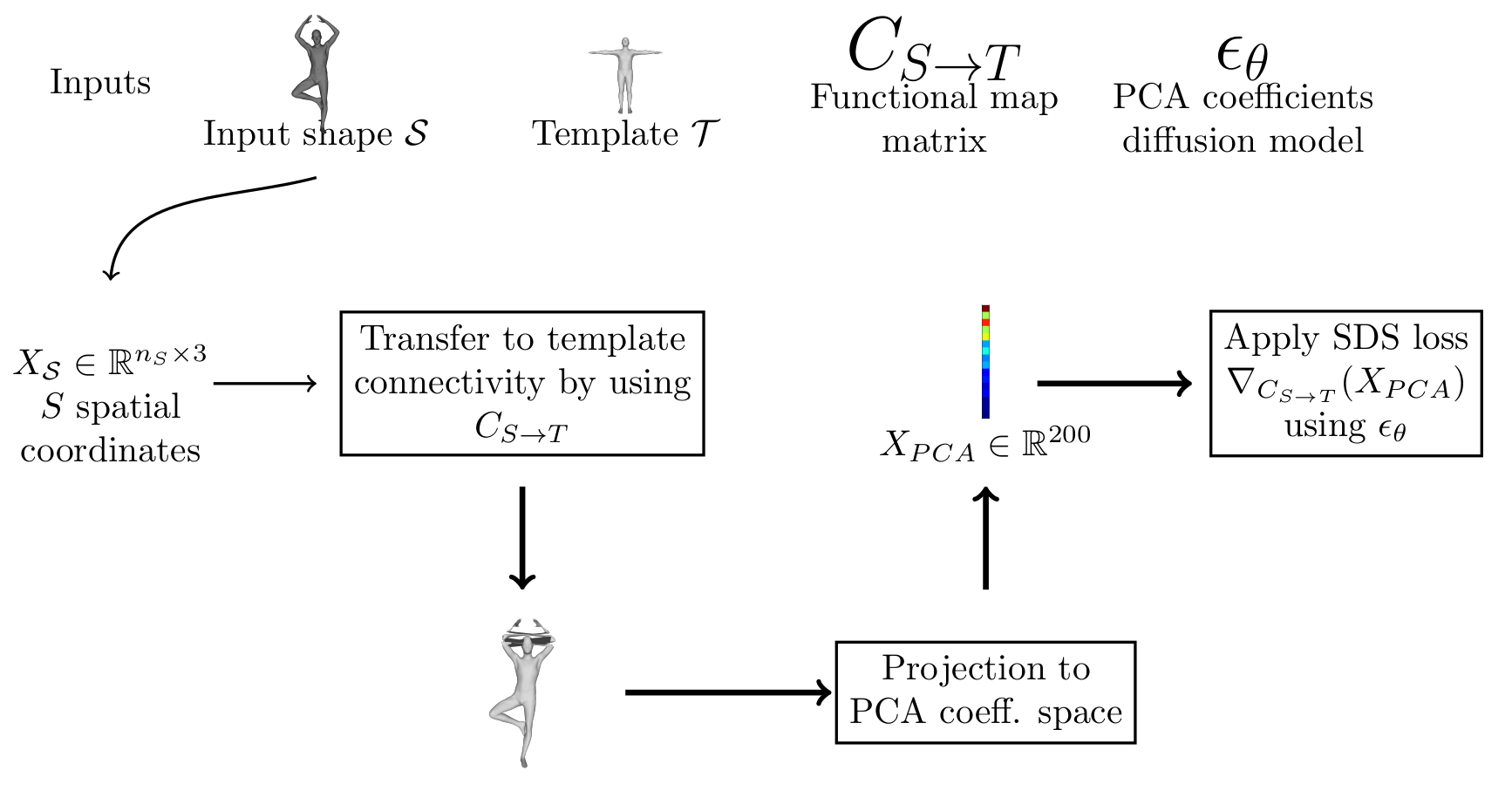

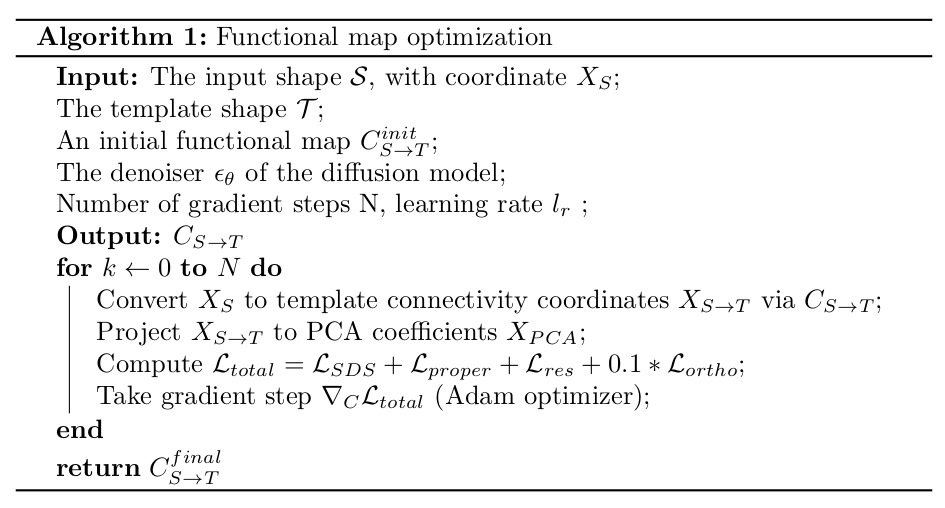

## {.smaller} ### Small recap Let an input shape $\mathcal{S}$, we wish to find the correspondance between this shape and a template shape $\mathcal{T}$. We do it using functional map. A functional map is a linear map between the function space $\mathcal{S} \to \mathbb{R}$ and $\mathcal{T} \to \mathbb{R}$. Let $\Phi_\mathcal{S} \in \mathbb{R}^{n \times n_S}$, $\Phi_\mathcal{T} \in \mathbb{R}^{n \times n_T}$, the Laplace eigenvectors of both shapes. The functional map can be represented as a matrix $C$ taking coefficient in $S$ basis to the ones in $T$ basis. Functional map work by matching features in the eigenbasis, but often fails because of underlying symmetry Suppose now we have a shape diffusion model (here it is in PCA coefficient space). Can we regularize those results with diffusion models? ## Proposed approach ; ## Full losses {.smaller} We add a new term to the loss we want to minimize. Given the transferred vertices $X_{\mathcal{S} \to \mathcal{T}}$, we compute the point correspondance in the spatial coordinates (+normals, to avoid erros when parts are gluing to each other). We then extract a functional map based on this correspondance, $C_{\text{spatial}}$, and minimize: $$ \mathcal{L}_{proper} = || C - C_{\text{spatial}}||^2 $$ We also force the PCA reconstruction to be close to the converted vertices. $$ \mathcal{L}_{res} = ||\text{Rec}(X_{PCA}) - X_{S \to T} ||² $$ Finally, we encourage the matrix to be orthogonal (~ area preserving map) via $$ \mathcal{L}_{ortho}= || CC^T - I||^2 $$ The full loss optimized is: $$ \mathcal{L}_{SDS} + \mathcal{L}_{proper} + \mathcal{L}_{res} + 0.1 * \mathcal{L}_{ortho} $$ ## Algorithm ; ## Some details - Number of steps : 3000 - One match : 5-10 min running on geomerix ## Quantitative evaluation - Ongoing for the moment - Errors goes from ~5 to ~1 on FAUST test set (spatial embeddings)  ## Planned - Try with no training - Evaluation on SHREC/SCAPE ### Results : starting from ground truth {width=600} From left to right: Reconstruction from PCA coefficients, Transferred vertices, texture map  ## ### Results: starting from output of fmap algorithm From left to right: Reconstruction from PCA coefficients, Transferred vertices, texture map  ## {.scrollable .nostretch} ### Results: different identity, easy pose  From left to right: Reconstruction from PCA coefficients, Transferred vertices, texture map  ## {.scrollable .nostretch} ### Results: different identity, hard pose {.scrollable}  From left to right: Reconstruction from PCA coefficients, Transferred vertices, texture map  ## Next steps - Theoretical investigations - Quantitative evaluation? - Different application? - Different dataset? ## Transfer to template connectivity We transfer the coordinates by convert the matrix $C_{S \to T}$ to a point to point map $\Pi_{S \to T}$. $$ F(X_S, C) = \Pi_{S \to T}^C X_S, $$ where $$ \Pi_{S \to T}^C (p, q) = \frac{\exp(-\delta_{pq}*\alpha)}{\sum_q {\exp(-\delta_{pq}*\alpha)}}, $$ with $\delta_{pq} = ||\Phi_T(q) - C\Phi_S(p)||²$ ## Notes for next steps
